Fengyi 380W Intelligent Moving Head Stage Lights All-in-One System FY-BM-10002

IP20
The Fengyi 380W All-in-One Powerhouse FY-BM-10002 delivers reliable, high-efficiency energy solutions with compact design. Ideal for versatile power needs, the FY-BM-10002 ensures durable performance and easy integration. Choose Fengyi for advanced, eco-friendly power systems.
Specification
Specification
Video
Video
Effect
Effect
Download
Download

Specification

Voltage and Power

AC100V–240V, 50/60Hz

Power: 500W

Color Temperature

3200K–8000K

Projection Range

Xaxis: 2.9 sec/540°, Yaxis: 1.5 sec/270°, with automatic calibration and positioning

Focusing

Adopts highprecision glass optical lens, with electronic linear HD adjustment

Control System

Control mode: DMX/ARTNITE/DRM/DMX wireless antenna (optional)

Channel mode: 19 channels in compact mode, 24 channels in standard mode

Housing Material

Flameretardant ABS

Operating Environment

–20°C ~ 40°C

Dimensions & Weight

Net weight: 23.00kg

Gross weight: 25.50kg

Product dimensions: 480 × 480 × 590mm

Light source system

Light source specification: 380W, 17R, 380W with 3level power adjustment

Light source quantity: 1 piece

Light source lifespan: 1500 hours

Beam Angle

BEAM: 0°–1.5°; SPOT: 1.5°–20°

Scanning Angle

Pan scan angle: 540°, Tilt scan angle: 270°

Dimming

Electronic linear dimming 0–100%

Strobing

Random strobing, pulse strobing

Gobos, Colors and Effects

Animation gobos: 9 gobos + white + water wave, with variablespeed shaking and bidirectional variablespeed flow effects; rotatable gobo plates replaceable.

Fixed gobos: 14 gobos + white, with gobo shaking and arbitrary positioning functions

Fixed colors: 13 color filters + white, with bidirectional rotating rainbow effect

Prism: 8+6 (angle 10°–20° free scaling)

Protection Rating

IP20

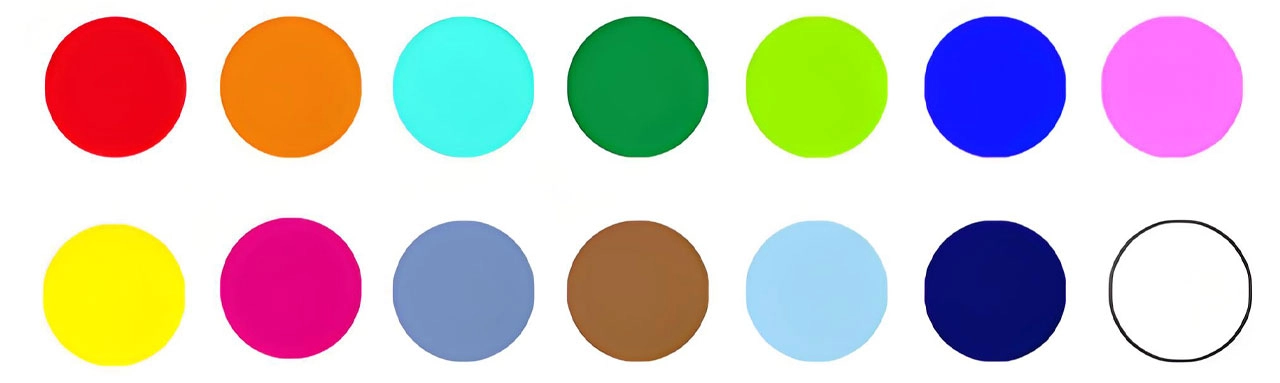

Color wheel

Color-wheel - Fengyi

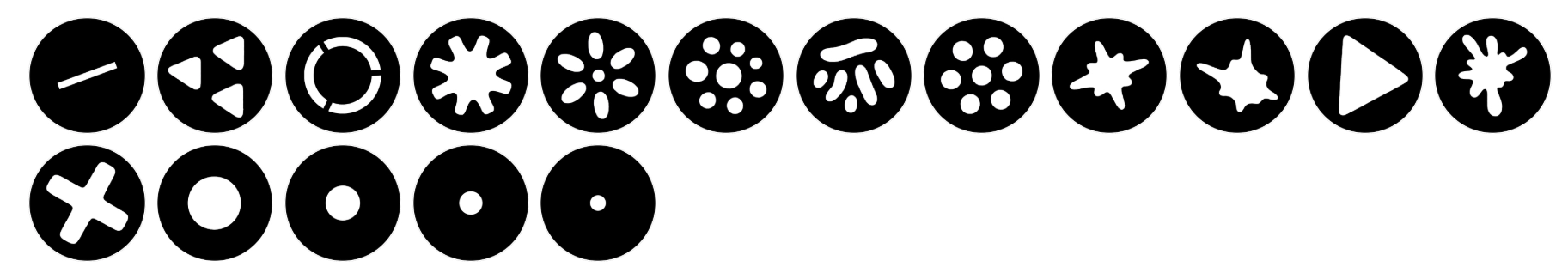

Fixed gobo wheel

Fixed gobo wheel - Fengyi

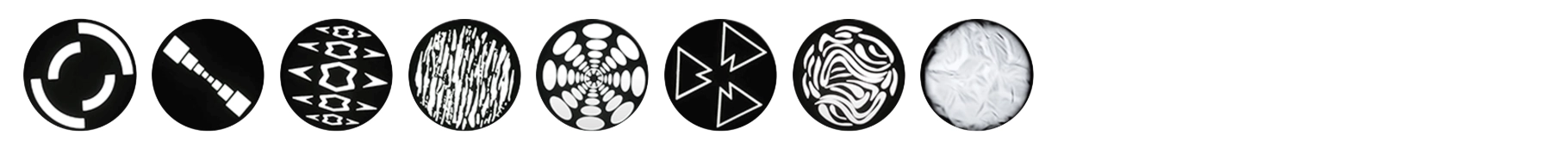

Rotating gobo wheel

Rotating gobo wheel - Fengyi

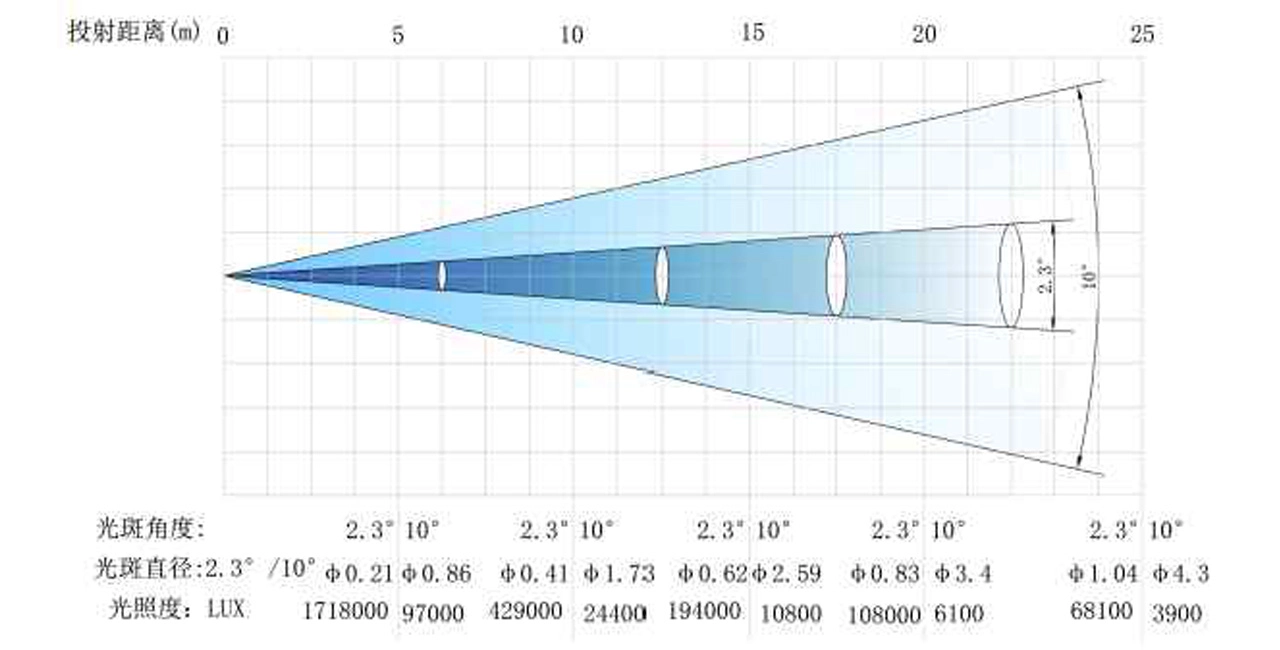

Photometrics

FY-BM-10002 - Fengyi

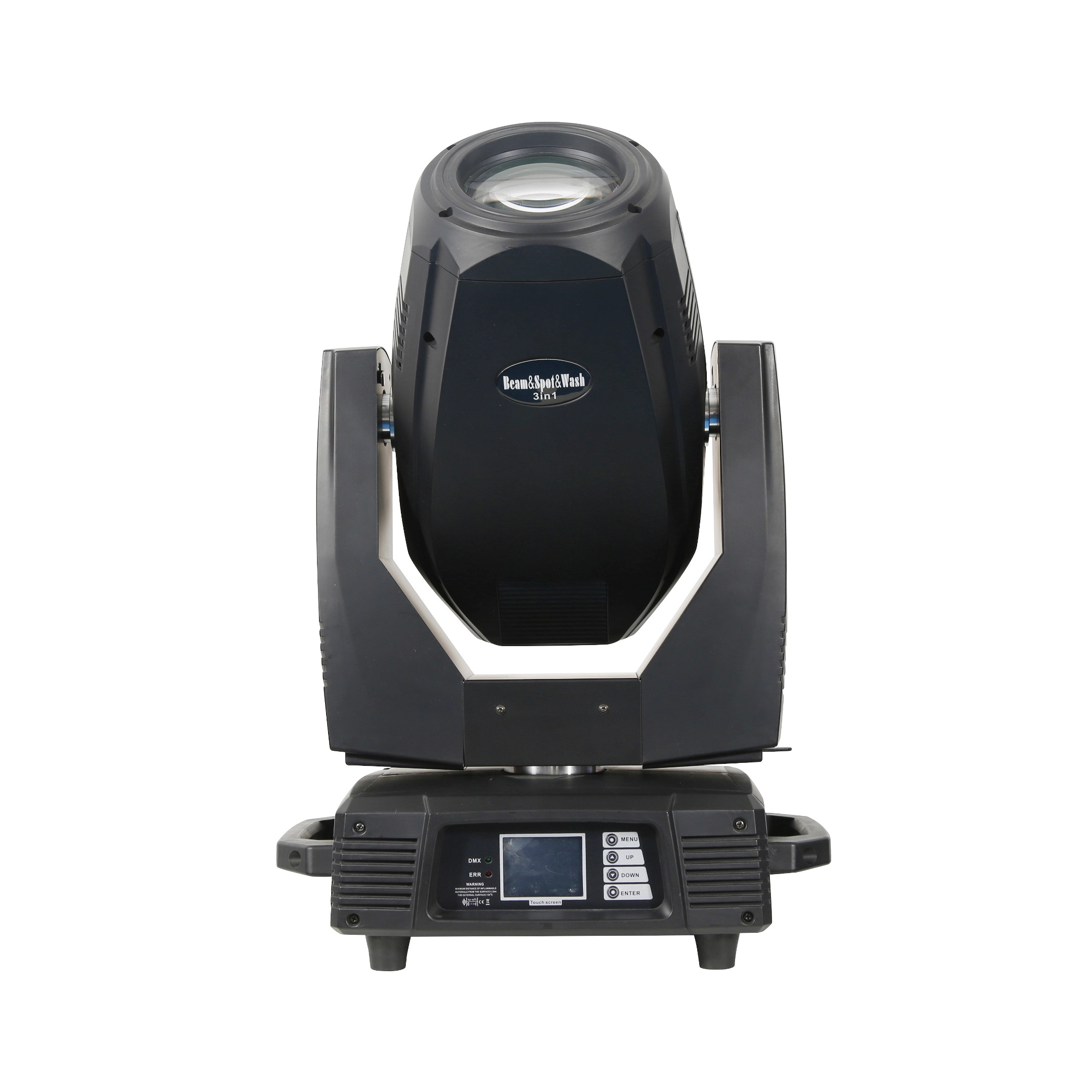

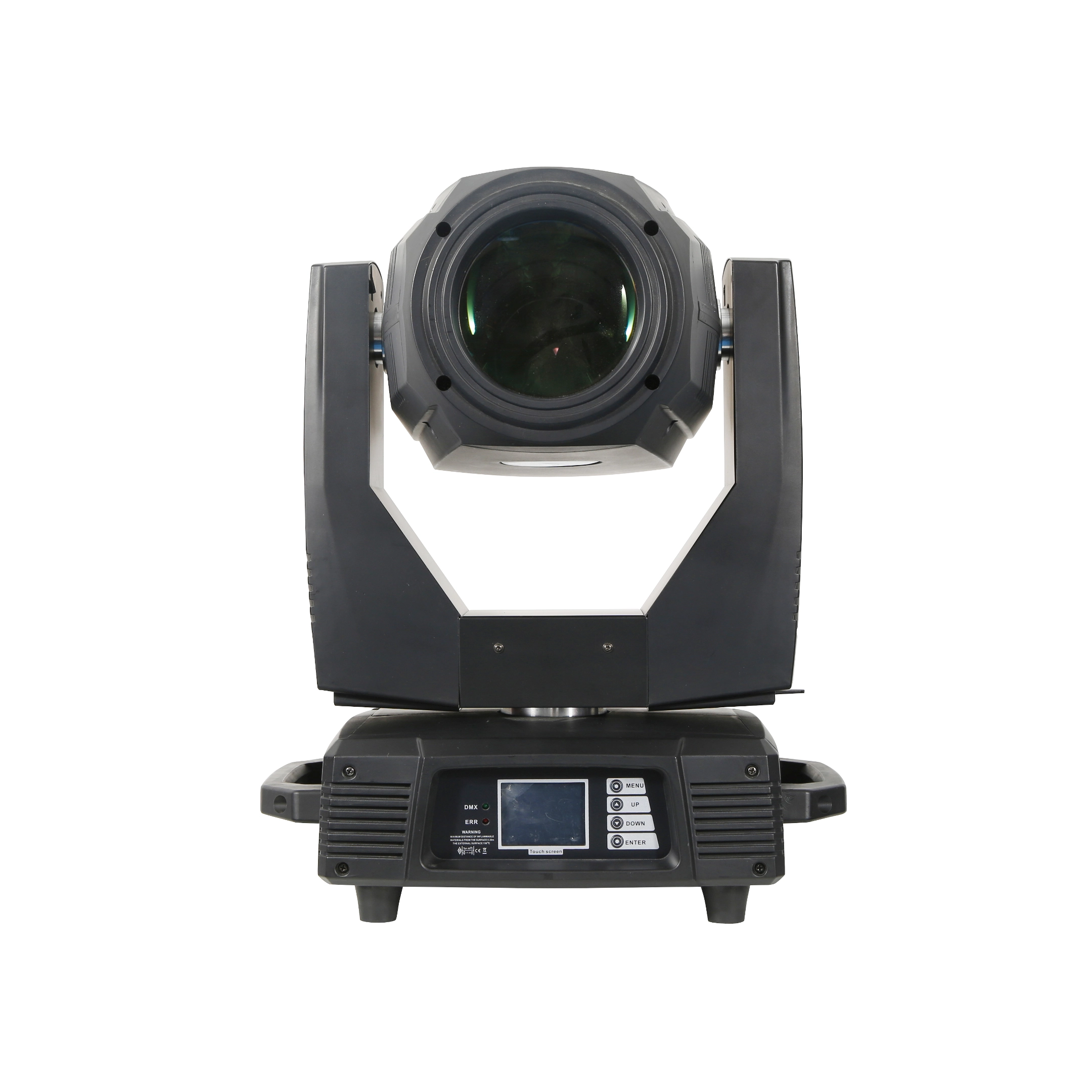

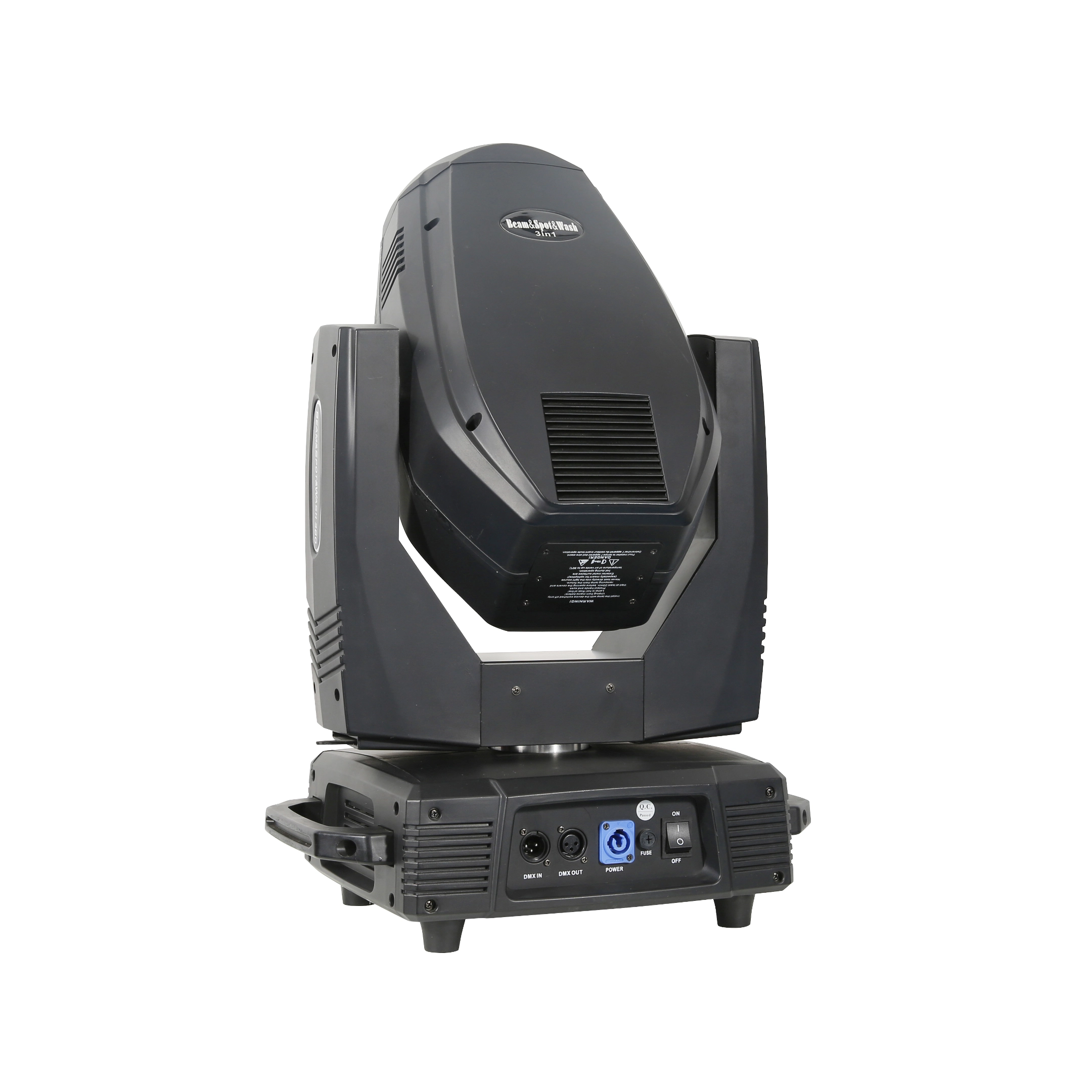

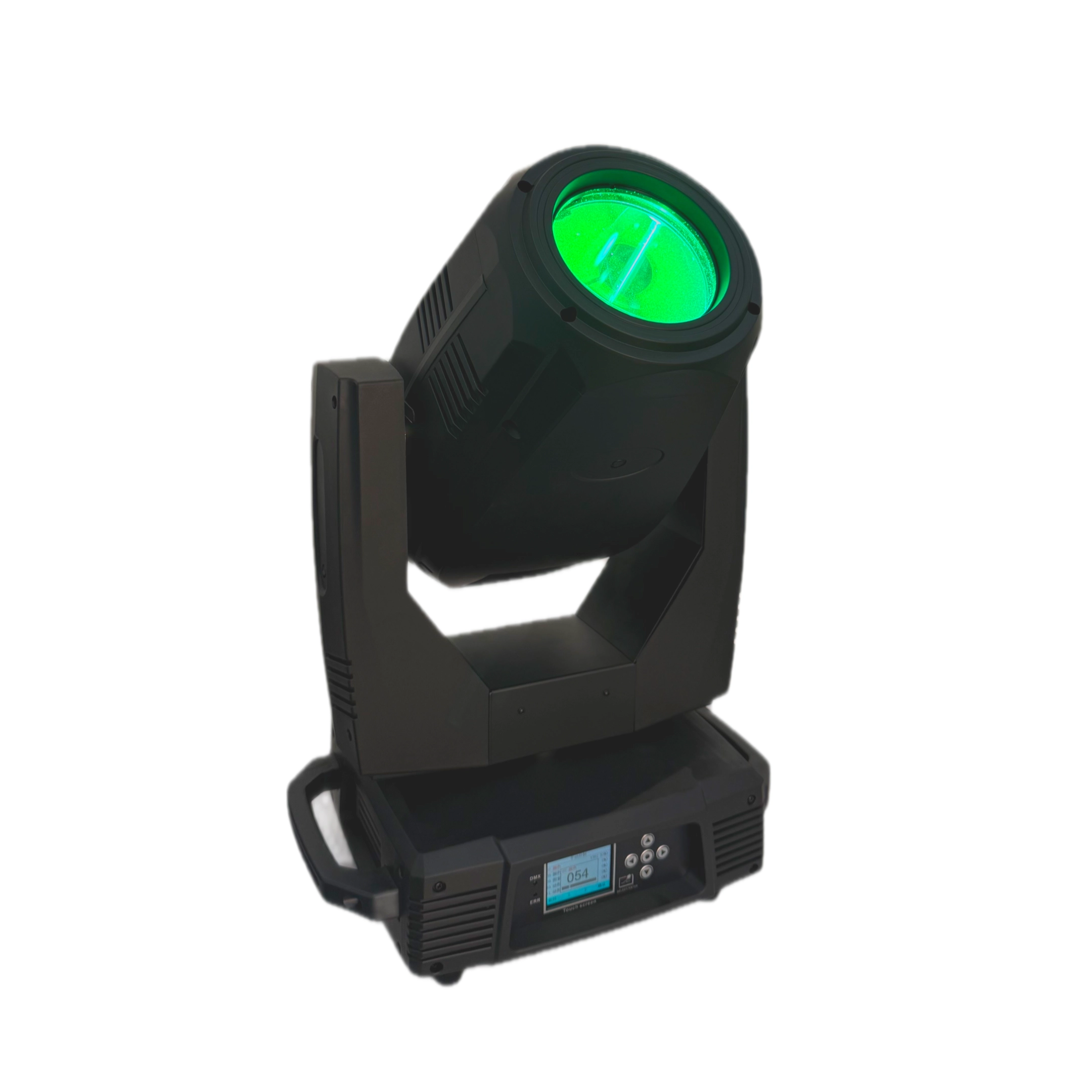

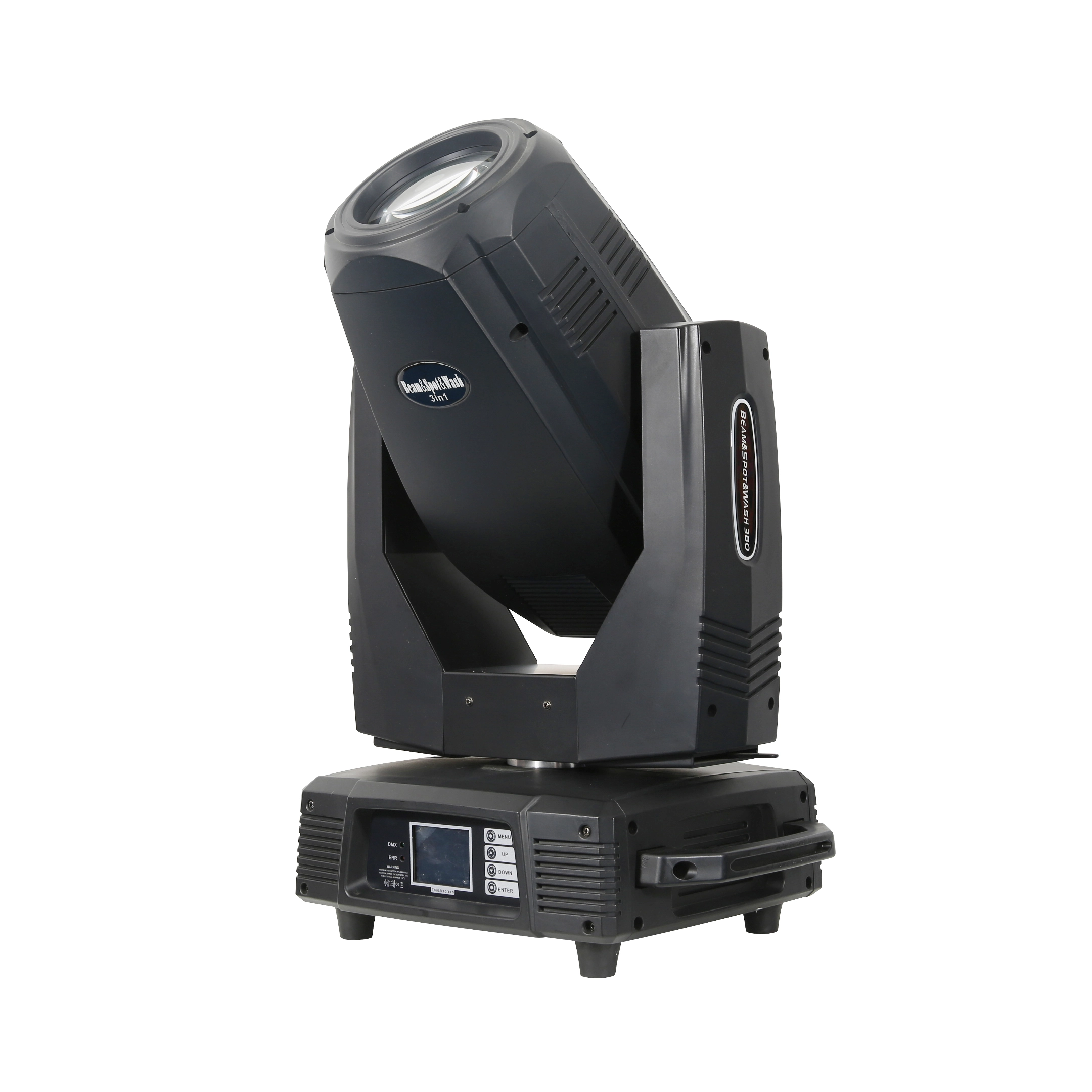

Display from different angles

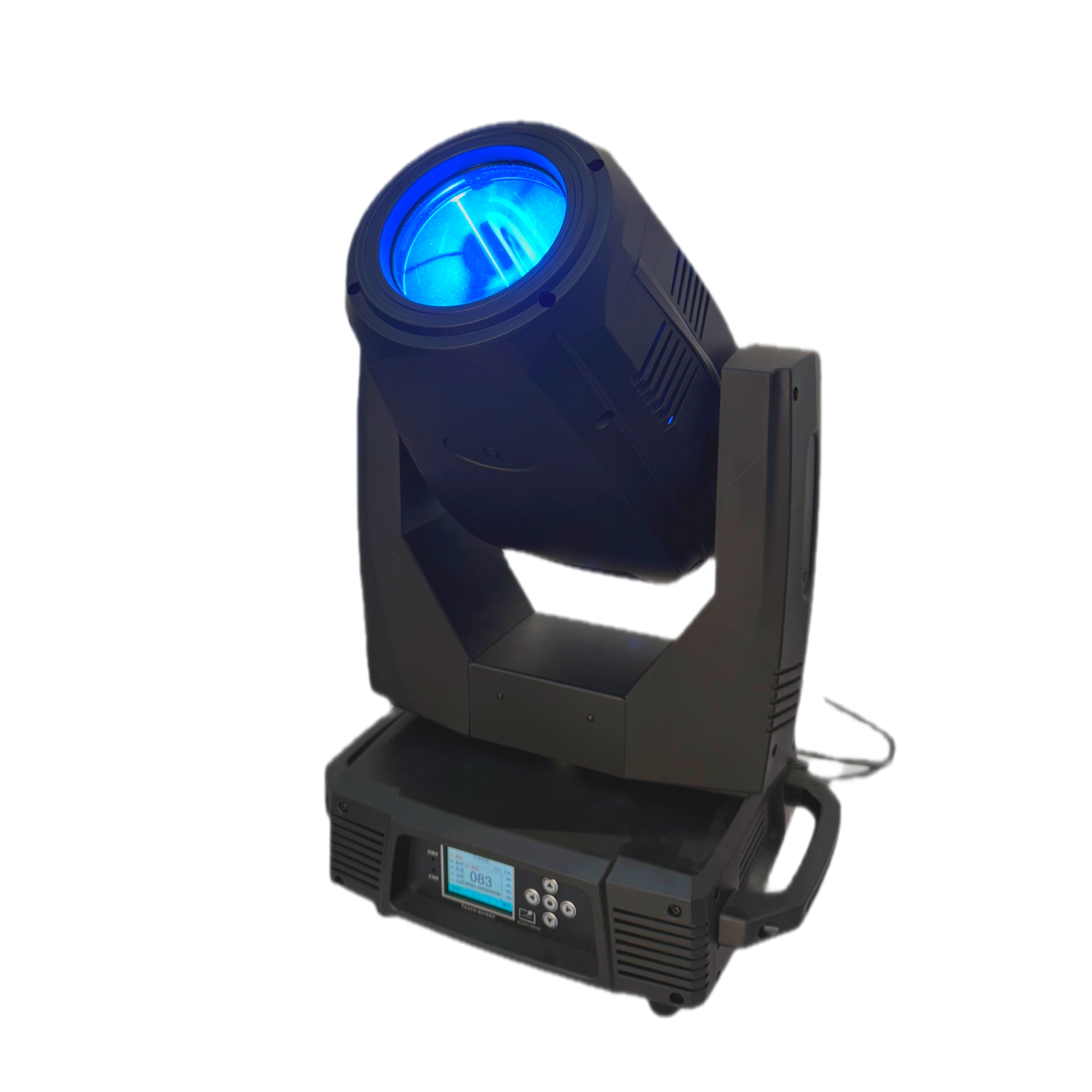

3月11日 (2)(1) - Fengyi
3月11日 (2) - Fengyi
3月11日 (2)(3) - Fengyi

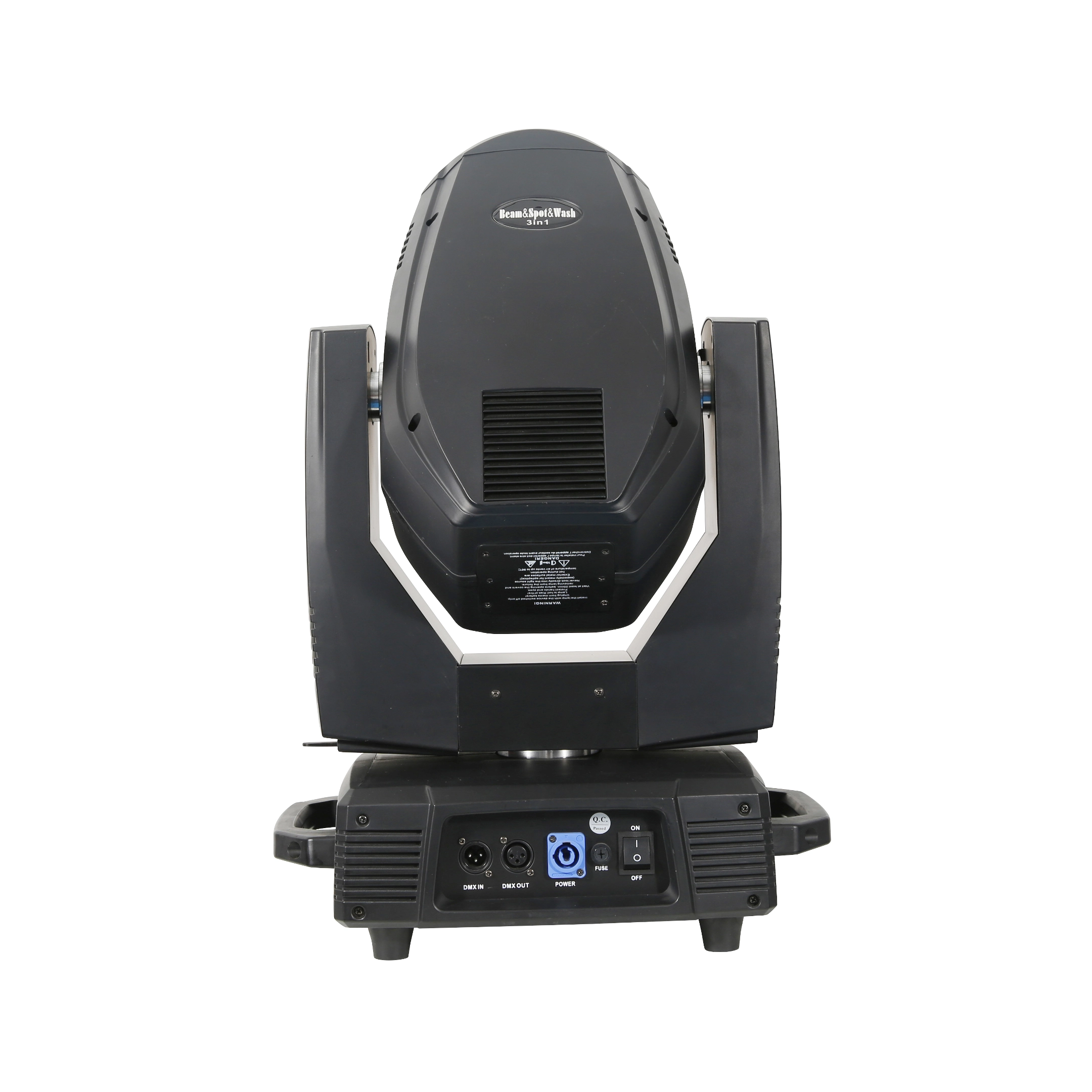

3月11日 (2)(6) - Fengyi
3月11日 (2)(5) - Fengyi
3月11日 (2)(2) - Fengyi
3月11日 (2)(4) - Fengyi

Dynamic video effects

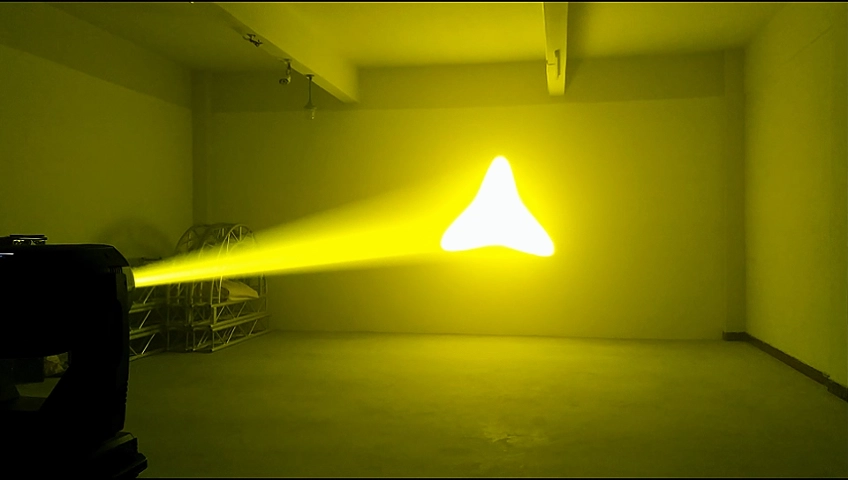

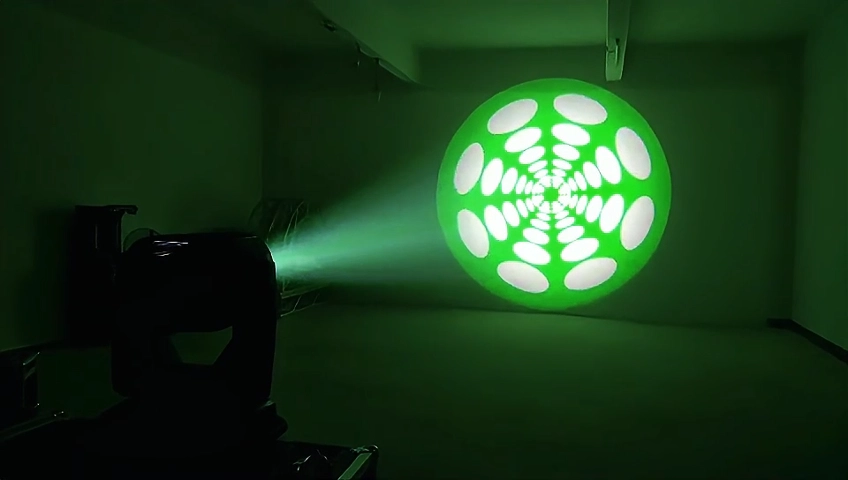

Effect

380(3) - Fengyi
380 - Fengyi
380(4) - Fengyi
380(2) - Fengyi
380(5) - Fengyi
380(1) - Fengyi

Download

380W Three-in-One User Manual

380W Tri-in-One Parameter Sheet
