Reviving the Ancient Capital Through Light: FYI Lighting Illuminates Luoyang Ying Tianmen
Fengyi's FYI Lighting masterfully revived Luoyang Ying Tianmen. Through innovative stage lighting design, utilizing dynamic moving head stage lights, we brought the ancient capital's grandeur to life. Explore our monumental illumination project.
Location:Luoyang, China
Product:Bee-eye Matrix Lights, Hybrid Effect Lights, High-Power Beam Lights
QTY:20 bee-eye lights, 10 effect lights, 15 beam lights
Reviving the Ancient Capital Through Light: FYI Lighting Illuminates Luoyang Ying Tianmen A Dialogue Between History and Modernity
Ying Tianmen, the main imperial gate of Luoyang City during the Sui and Tang dynasties, stands as one of the most grandly structured city gates in ancient Chinese architectural history. It bore witness to the prosperity of the Sui‑Tang golden age, when envoys from across the world came to pay homage. Today, as the centerpiece of Luoyang’s large‑scale heritage conservation initiative, the Ying Tianmen Ruins Museum has become a must‑visit destination for global tourists to explore Sui‑Tang culture.
In 2024, to enhance nighttime visitor experiences and create immersive cultural tourism scenarios, the Ying Tianmen Scenic Area launched a major nighttime light show upgrade. Guangzhou FYI Stage Lighting Equipment Co., Ltd. was selected as the core equipment supplier, thanks to its superior product performance and extensive experience in cultural tourism projects. Using a professional matrix of 37‑zone LED wash lights, beam lights, flood lights, and laser lights, FYI has clothed this thousand‑year‑old gate in a radiant robe of light and shadow, enabling a dialogue between history and modernity while inviting visitors to dream back to the glorious Tang Dynasty under the night sky.
Core Challenges & Solutions
As a national‑level cultural relic protection site, the nighttime lighting upgrade of Ying Tianmen faced multiple strict challenges:
- Lighting design must preserve the historic structure and original appearance; any drilling or mounting required official approval.
- The system must support both daily functional lighting and large‑scale festival light shows.
- As an open‑air attraction, all equipment required high‑level waterproof, dustproof, and weather‑resistant performance.
- Lighting effects must reflect the grandeur of Sui‑Tang culture while integrating modern technological aesthetics.
Our solution centers on the philosophy: Respect History · Empower with Technology.
After extensive on‑site surveys, the FYI team adopted a distributed installation strategy, placing all fixtures in dedicated positions outside protected zones to ensure zero impact on cultural relics.
- 37‑zone wash lights create vast, flowing “starry skies” and “auspicious cloud” particle effects, laying a dreamlike foundation for the gate.
- Beam lights outline the tower’s silhouette with sharp, defined rays, building a dynamic spatial structure.
- Flood lights accurately restore architectural details such as bracket sets and roof ornaments, ensuring reliable functional illumination.
- Laser lights project clean, vivid beams to display patterns and characters including “Divine Capital Luoyang,” serving as the highlight of the show.

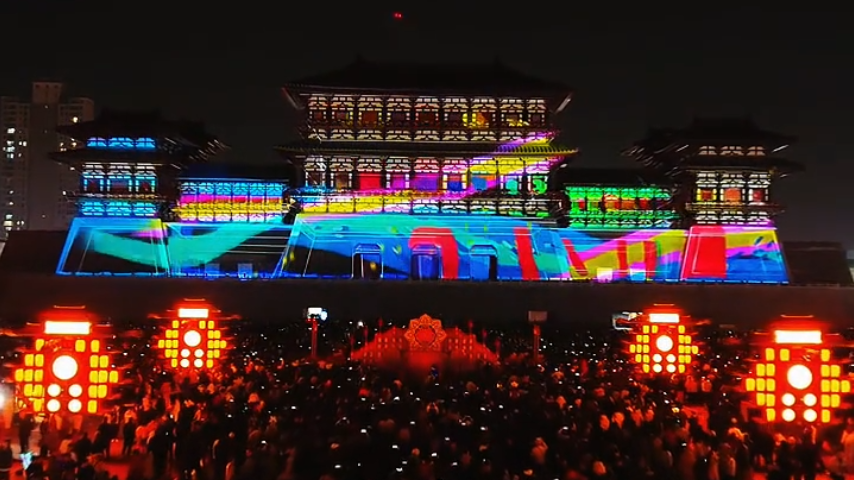

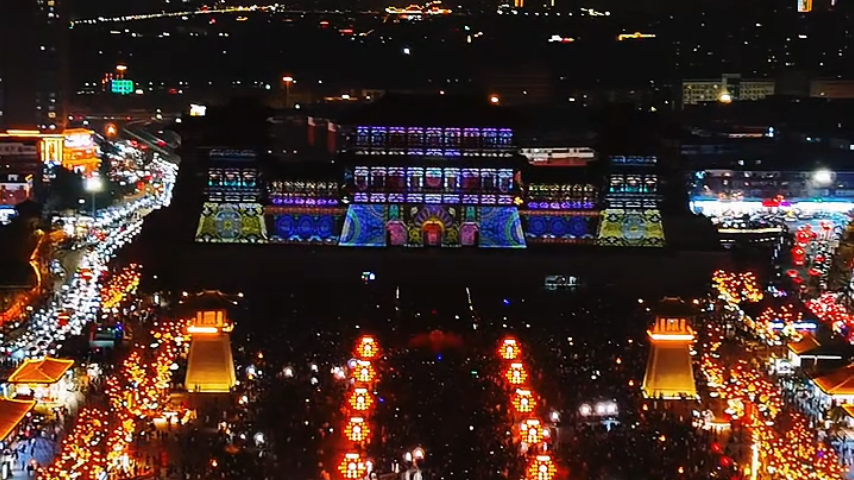

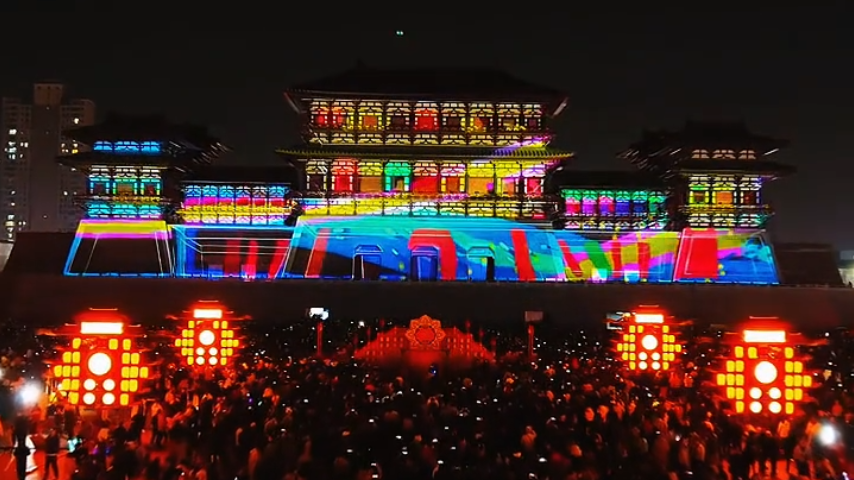

Coordinated via an intelligent control system, the four fixture types seamlessly switch between energy‑saving daily mode and spectacular festival mode, delivering highly popular “Ying Tianmen 3D Light Shows” that captivate visitors night after night.
Project Overview
| Item | Details |
|---|---|
| Destination | China (National Cultural Tourism Landmark Project) |
| Products Supplied | 37‑zone LED wash lights, beam lights, flood lights, laser lights |
| Quantity | 37‑zone wash lights: 48 units
|
Client Background
The Ying Tianmen Ruins Museum is Luoyang’s flagship showcase of Sui‑Tang culture, hosting more than 3 million visitors annually. Its original nighttime lighting consisted only of basic functional floodlighting, lacking visual appeal and immersion and failing to meet growing night‑tour demands.
The client aimed to develop a permanent, high‑quality nighttime light show that balanced cultural depth and modern technology, making it a new engine for Luoyang’s night economy.
Key requirements included:
- Full approval from cultural relic protection authorities
- Adaptation to northern China’s seasonal temperature variations
- Visual expression of the prosperity of the Sui‑Tang era
- Remote intelligent control and energy‑efficient operation
Cooperation Process
The partnership began with the client’s vision: Using technology to tell China’s story.
The FYI team conducted multiple on‑site surveys in Luoyang and held in‑depth discussions with heritage experts, scenic area operators, and lighting designers. Based on a full understanding of the architectural layout, visitor flow, and cultural narrative, we proposed a four‑layer lighting scheme themed Golden Age of Sui‑Tang · Light of the Divine Capital.
The plan strictly complied with cultural relic protection regulations: all equipment was installed on ground bases or independent poles, imposing no load on the historic tower. We produced a 3D simulation video demonstrating multiple scenes from daily basic lighting to festival performances.
Upon approval, all fixtures were custom‑manufactured to outdoor IP66 waterproof standards and tested for low‑temperature resistance suitable for northern climates. Our senior engineering team supervised on‑site installation and commissioning, trained the client’s operation staff, and handed over multiple pre‑programmed light show sequences.
Product Highlights & Technical Specifications
The solution is built around coordinated performance of four professional lighting types, forming a complete and integrated lighting ecosystem.
Product Features
-
37‑zone LED Wash LightsCore strength: delicate, particle‑level light effects.Unique honeycomb micro‑lens array projects dense, independently controllable light spots simulating stardust, particle flows, and drifting clouds. Supports wash, beam, and graphic modes; RGBW color mixing delivers uniform, vibrant hues, creating a deep, dreamlike base for the tower.
-
Beam LightsCore strength: power and dynamism.High‑power light source with precision optics produces sharp, long‑throw beams reaching hundreds of meters. Equipped with color wheels and prism systems for fast effect switching. Ultra‑quiet high‑speed motors ensure smooth, precise scanning for architectural outlining and dynamic light tunnels.
-
Flood LightsCore strength: accurate color rendering and uniform illumination.High CRI COB LED source (CRI ≥95), adjustable color temperature (3000K–6000K), faithfully reproducing the true colors of bracket sets, murals, and plaques. Smooth, flicker‑free dimming ensures ideal conditions for nighttime photography and live broadcasting.
-
Laser LightsCore strength: purity and expressive power.Solid‑state laser modules produce highly saturated red, green, and blue beams. Capable of beam scanning, geometric patterns, and custom text projection — including “Luoyang” and “Divine Capital” — creating iconic photo opportunities.
Key Technical Parameters
| Specification | 37‑zone Wash Light | Beam Light | Flood Light | Laser Light |
|---|---|---|---|---|
| Light Source / Power | 37×12W RGBW LED, 500W total | 380W discharge lamp, 450W | COB LED, CRI≥95, 200W | RGB solid‑state laser module |
| Beam Angle | 6° | 2.5°–20° electronic zoom | 60° flood | Adjustable scanning angle |
| Color System | RGBW infinite color mixing | 14 colors + white, rainbow effect | 3000K–6000K tunable | Pure RGB laser |
| Core Effects | Wash / Beam / Graphic | 8+16 prisms, bi‑directional rotation | 0–100% linear flicker‑free dimming | Beam scanning, graphics, text projection |
| Control Protocol | DMX512, master/slave, sound active | DMX512, RDM, 16CH | DMX512, RDM | DMX512, ILDA |
| Ingress Protection | IP65 | IP66 | IP65 | IP65 |
| Lifespan | 50,000 hours | 2,000 hours (lamp) | 50,000 hours | 10,000 hours |
Client Testimonial
“Ying Tianmen is the pride of Luoyang and a treasure of Chinese civilization. We long sought a lighting solution that honors history while making traditional culture appealing to young people. FYI’s products and team delivered exactly that.The starry sky created by the 37‑zone wash lights makes the tower appear to float in the galaxy. The dynamic scanning of beam lights revives the majestic spirit of the Sui‑Tang dynasties. The laser‑projected ‘Divine Capital Luoyang’ has become a must‑take photo background for every visitor.What impresses us most is the flood light — it clearly illuminates every bracket and roof tile with natural, authentic color, perfect both in person and on television.The FYI team remained professional and rigorous from design to implementation. After a summer of heavy rain and high temperatures and a winter of severe cold, all equipment has operated with zero failures.This truly represents a win‑win for culture and technology.”
Value for Brand Credibility & Conversion
This project significantly strengthens FYI’s market position and sales appeal:
-
National‑Level Cultural Landmark EndorsementServing Ying Tianmen — a model for heritage conservation and cultural tourism integration — directly proves FYI’s expertise in relic protection, outdoor durability, and cultural expression, making it highly persuasive for similar large‑scale projects.
-
Heritage‑Grade Professional AdaptabilityThe case demonstrates FYI’s ability to design under strict heritage constraints: non‑intrusive installation, high IP ratings, remote intelligent control. This highlights a unique advantage in delivering customized solutions for high‑end cultural heritage sites.
-
System Integration CapabilityBy showcasing the coordinated performance of four professional lighting types, FYI proves its capacity as a system integrator for large‑scale night tours, not merely an equipment supplier.
-
Balanced Cultural & Commercial ValueThe project links lighting effects to visitor experience, night economy, and city branding, demonstrating tangible value in boosting scenic appeal and revenue — highly attractive to tourism investors and decision‑makers.
-
Proven Outdoor ReliabilityIP66 protection, temperature resistance, and high CRI performance reflect FYI’s deep understanding of harsh outdoor environments, appealing to professional buyers prioritizing long‑term stability.
-
Repeatable Night‑Tour SolutionThe success of Ying Tianmen provides a replicable model for heritage sites, ancient city walls, and historic districts nationwide, serving as a powerful sales tool for clients seeking standardized yet customizable lighting solutions.
Guangzhou FYI Stage Lighting Equipment Co., Ltd.
Telling China’s stories through light and shadow,
Illuminating cultural heritage with technology.
