Fengyi 480W All-in-One Moving Head Beam Light Professional Stage Lighting FY-BM-10003

IP20
The 480W All-in-One Powerhouse FY-BM-10003 by Fengyi is a high-performance Moving Head Beam Light, delivering powerful illumination and dynamic effects. Ideal for professional events, this versatile product combines efficiency and durability for stunning visual experiences.
Specification
Specification
Video
Video
Effect
Effect
Download
Download

Specification

Voltage and Power

Rated Voltage: AC100V–240V, 50/60Hz

Power: 700W

Color temperature

Color Temperature: 7500K

Color Rendering Index

Color Rendering Index: Ra≥85

Prism

8prism, 16prism, bidirectional rotation, prisms stackable, with positioning function

Beam Angle

5°–65%

Patterns, Colors, and Effects

Patterns: One fixed pattern wheel with 12 patterns + white light

One rotating pattern wheel with 7 pattern discs + white light, featuring pattern flicker function and arbitrary positioning capability.

One effect pattern wheel: 5 patterns + white light, with flame and flowing water dynamic effects

Colors: 8 colors + white light + CTO (3200K7500K)

Specifications

Net Weight: 23.00KG

Gross Weight: 25.00KG

Dimensions: 480x460x735mm

Light source system

Light Source Specification: OSRAM 482W 18R Bulb

Number of Light Sources: 1

Light Source Life: 1500 hours

Scanning Angle

Horizontal Scan: 540° (16bit precision scanning)

Vertical Scan: 270° (16bit precision scanning)

Autoreturn correction function

Focus

Electronic focus (autofocus)

Dimming

Linear Dimming: Mechanical linear dimming 0100%

Strobe

Random strobe, pulse strobe

Control System

Control Methods: DMX512, RDM, Artnet (optional), Master/Slave, Standalone, Sound Control ·Channel Mode: 32CH/24CH

Protection Rating

IP20

Operating Environment

–20°C ~ 40°C

Color wheel

01e047f41abc8f14c63d17cc43fc3db2 - Fengyi

Fixed gobo wheel

062a3972c860055e24d1894a7e9beef7 - Fengyi

Photometrics

FY-BM-10003-01 - Fengyi

Display from different angles

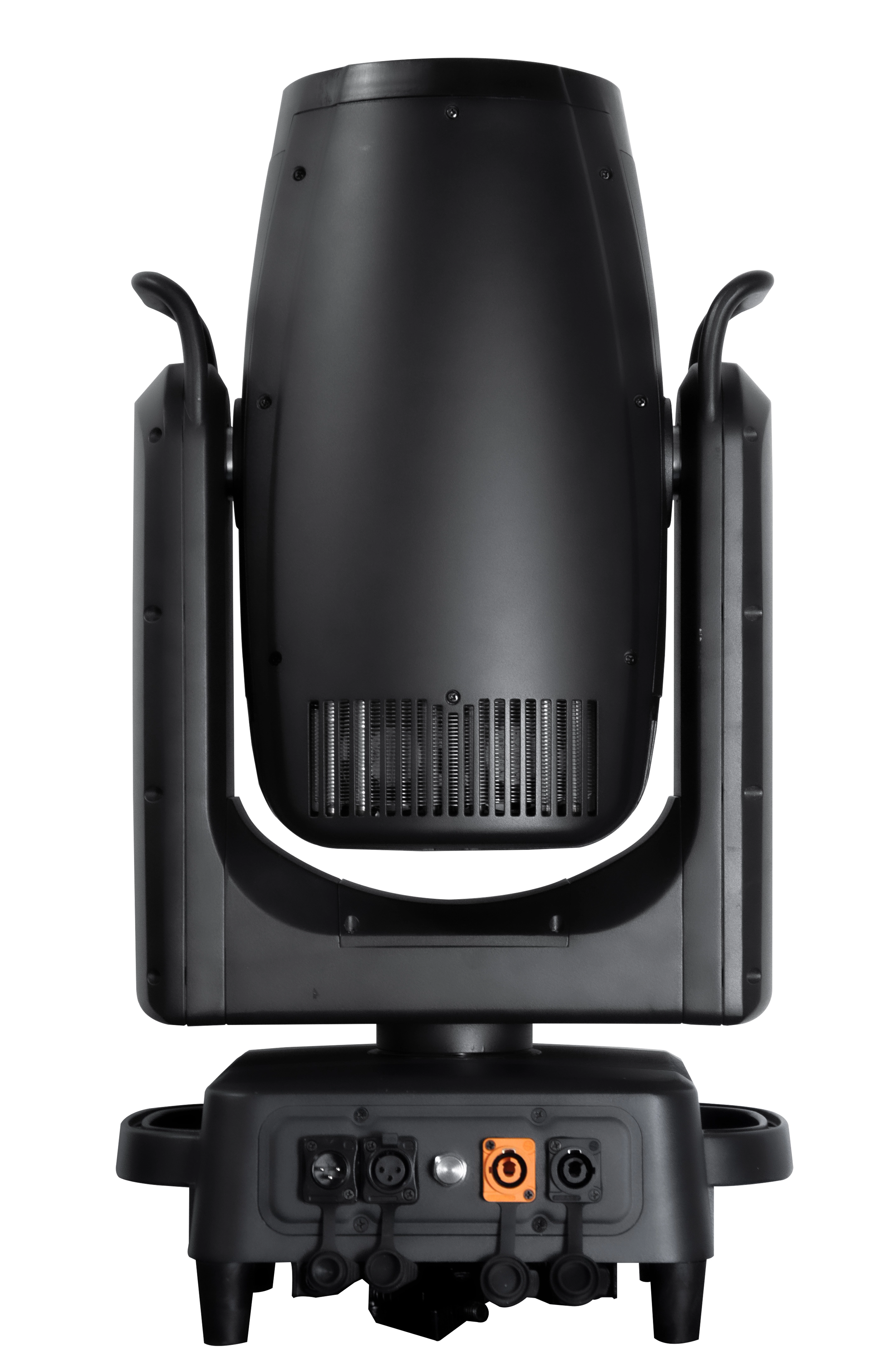

480防水光束灯 (1) - Fengyi

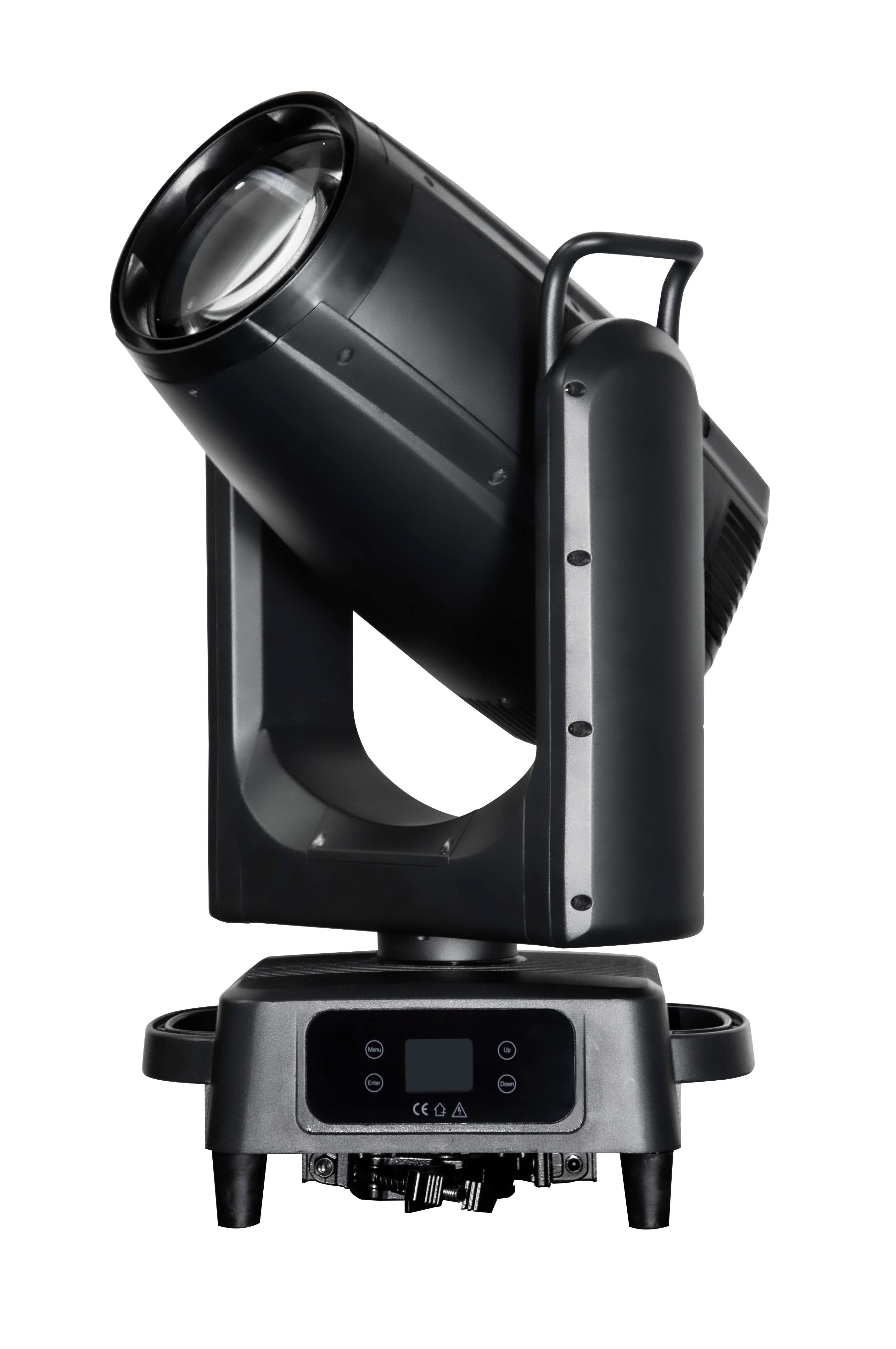

480防水光束灯 (2) - Fengyi

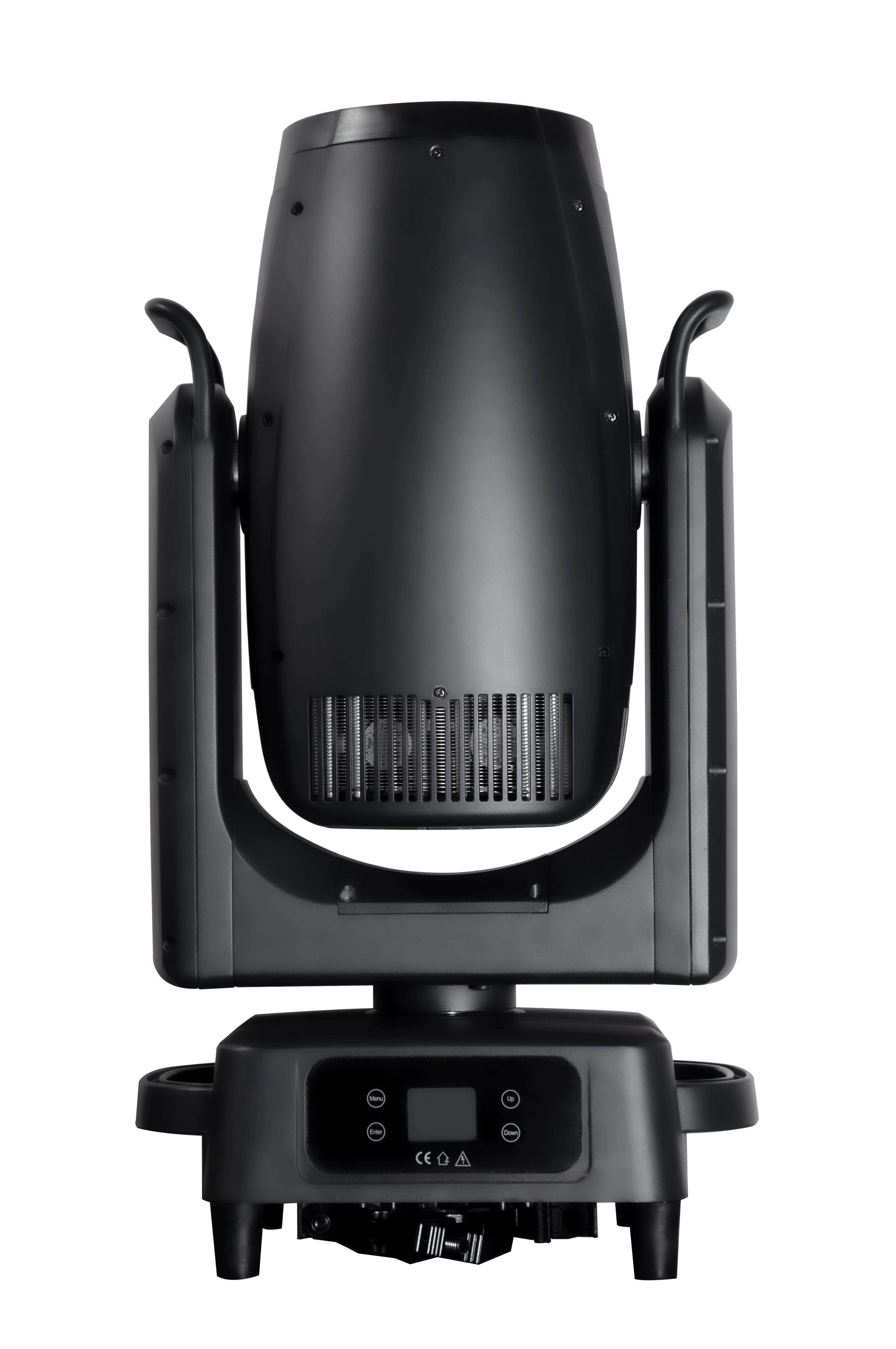

480防水光束灯 (4) - Fengyi

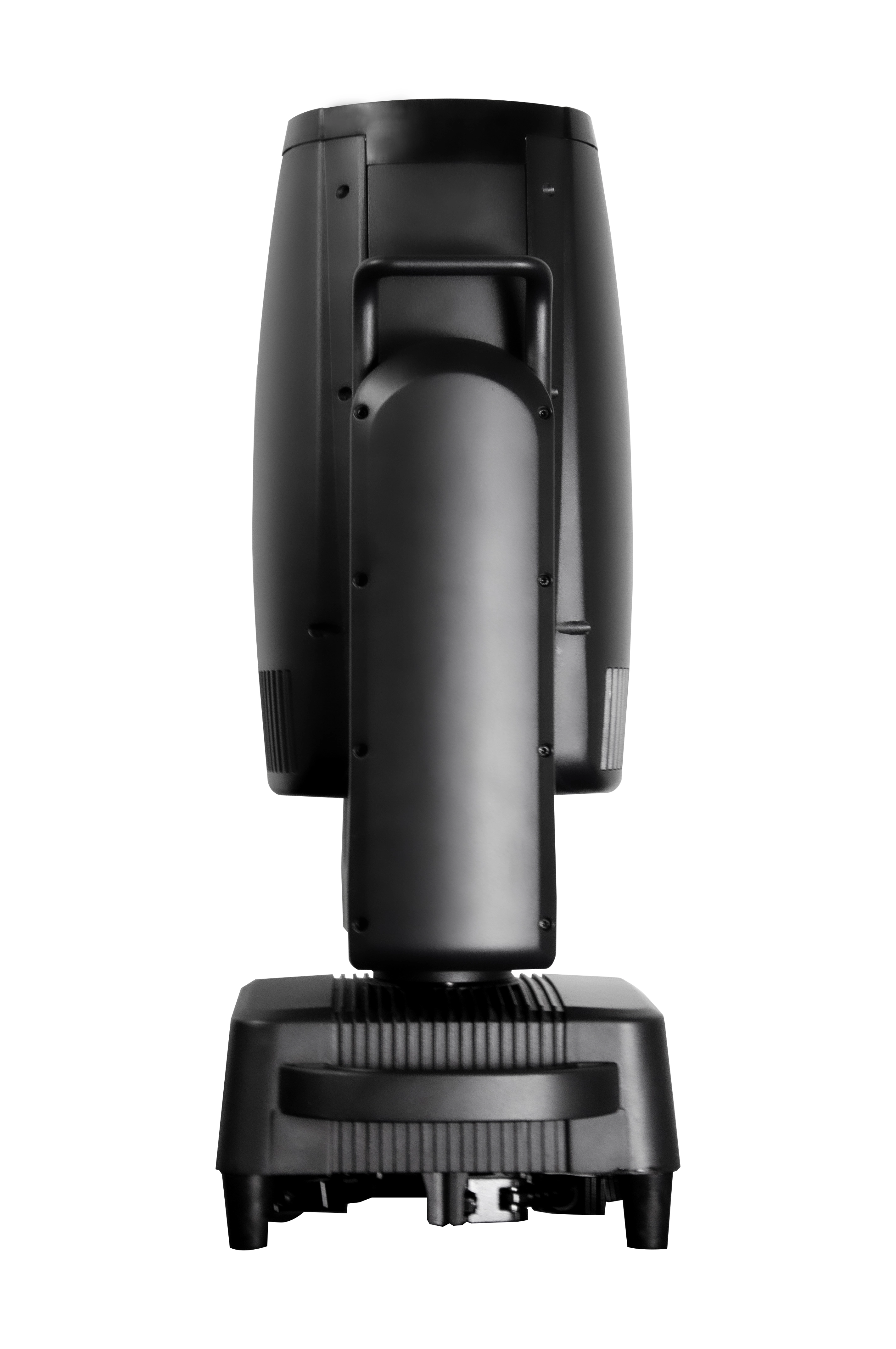

480防水光束灯 (3) - Fengyi

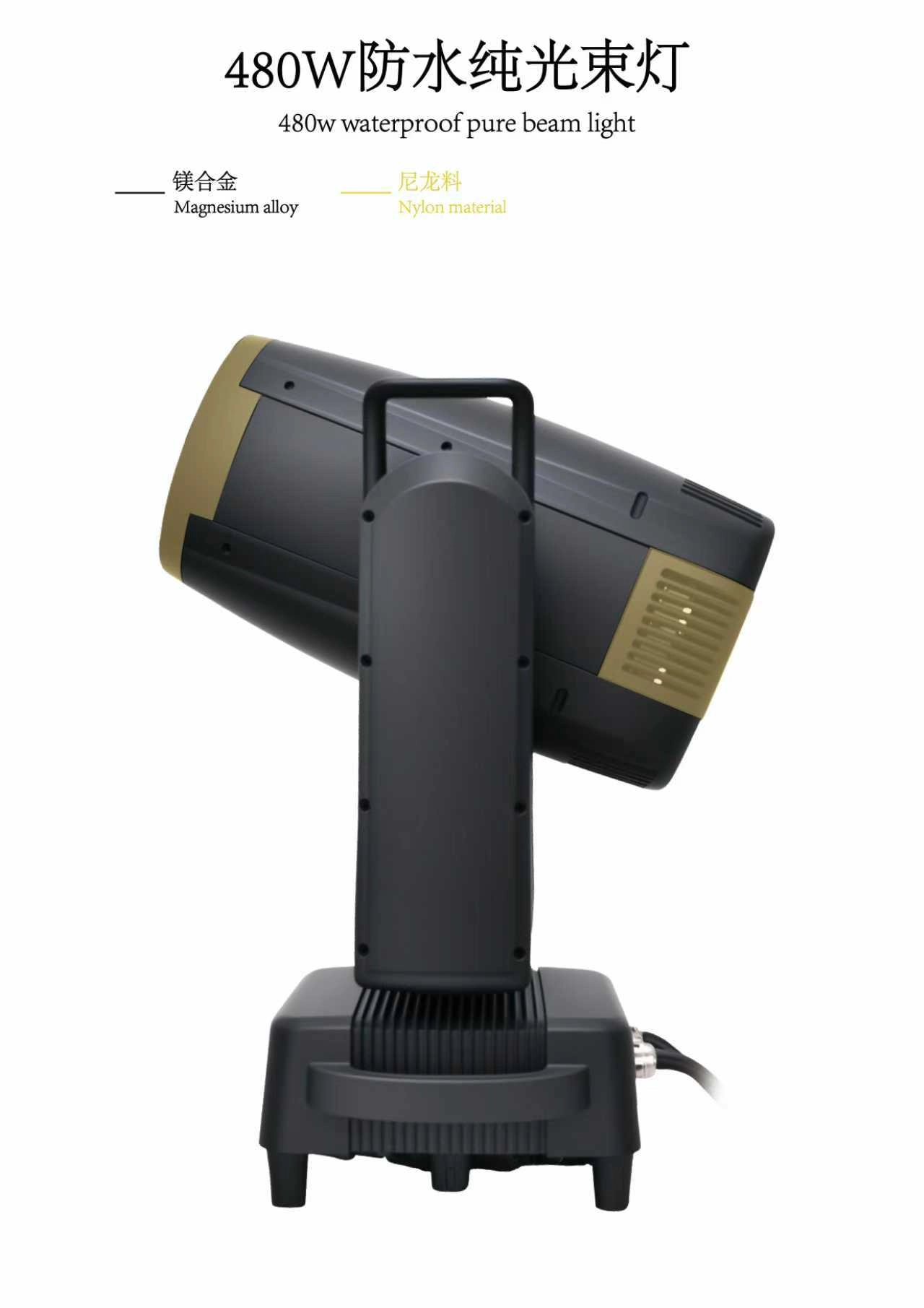

480防水纯光束材质 - Fengyi

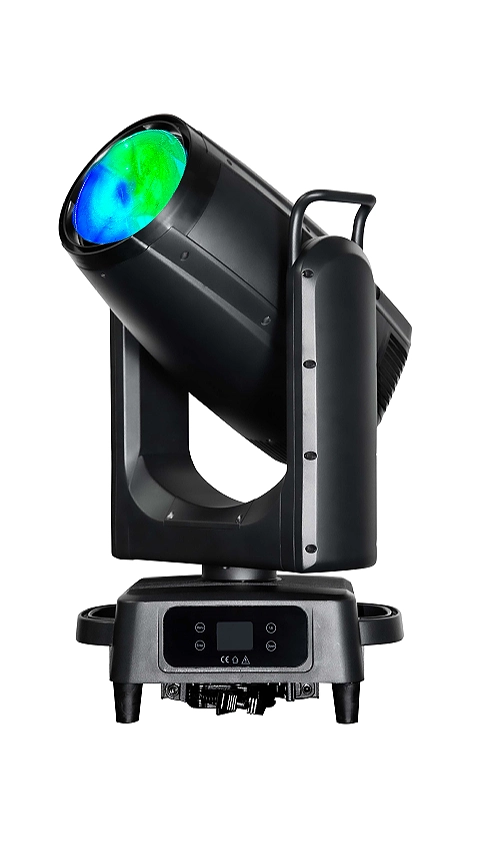

480W - Fengyi

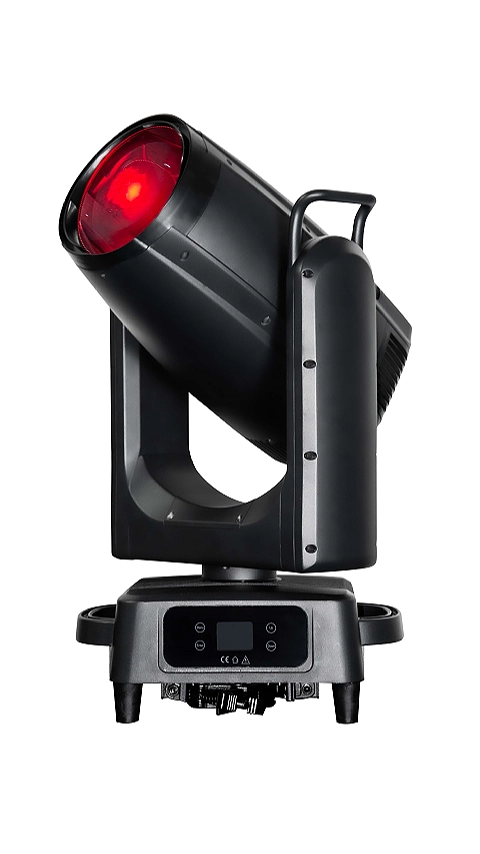

480W(2) - Fengyi

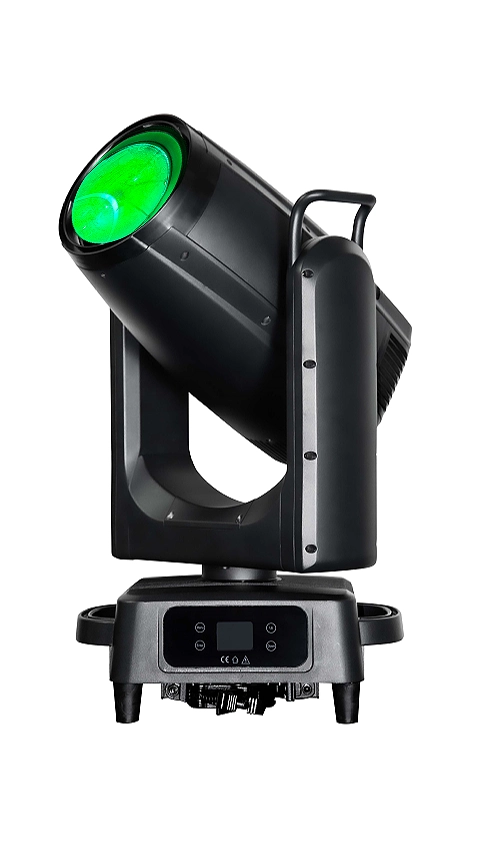

480W(1) - Fengyi

Dynamic video effects

Effect

480W(12) - Fengyi
480W(11) - Fengyi
480W(7) - Fengyi
480W(9) - Fengyi
480W(10) - Fengyi
480W(4) - Fengyi
480 - Fengyi
480W(6) - Fengyi
480W(8) - Fengyi

Download

480W.

480W
