Documentary of the Lighting Project at Mawal Lounge Bar
In Shenzhen, a city defined by “technology and speed,” Circle Club aims to become a premium social venue that reflects the core spirit of the metropolis. Its core challenge was to move beyond conventional nightclub lighting paradigms and create a system that echoes the high-tech identity of Shenzhen as a “digital city,” while delivering a sophisticated, avant-garde, and artistically expressive immersive environment.
Product:Lifting Square Beam Screen；Laser Light；Bee-Eye Light；Effect Light；Beam Light
Title
Fengyi Lighting has created an immersive leisure light and shadow space for Mawal Lounge. The project uses laser lights to outline sharp lines, beam lights to build the spatial structure, bee-eye lights to lay a particle background, and face lights to ensure functional lighting. With the precise coordination of the four types of fixtures, it perfectly integrates leisure socializing with visual art, successfully establishing a new benchmark for high-end lounge bars in the local area.
Case Introduction
The core challenge for Mawal Lounge was balancing the relaxed social atmosphere of a high-end lounge with the visual tension required for nighttime entertainment. Unlike the constant high energy of traditional nightclubs, a lounge bar demands lighting that flexibly shifts with time and mood — from easy comfort in the early evening to psychedelic immersion late at night. It must not be overwhelming, yet must create memorable moments at key points.
Our solution is a four-layer light and shadow system with clear hierarchy and measured rhythm.

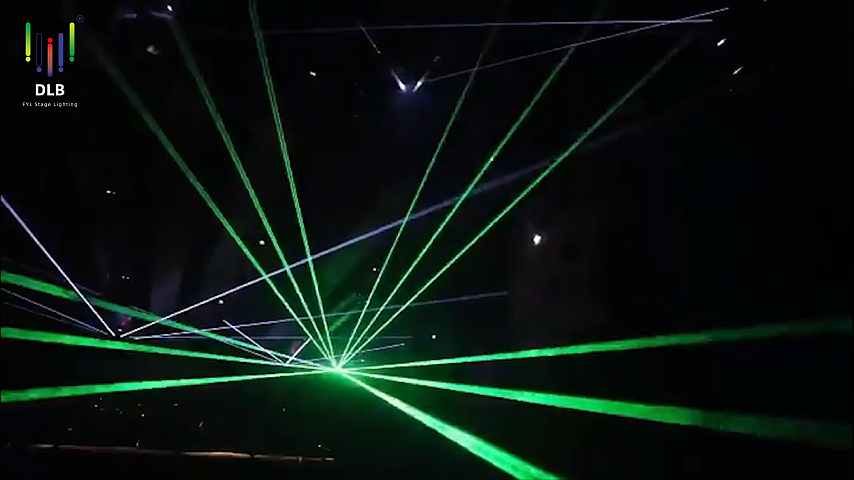

Laser lights, with their pure, sharp beams, trace clear light paths and geometric shapes in the air, injecting a sense of technology and visual penetration into the space. Their precise scanning control creates subtle light and shadow interest without disturbing conversation.

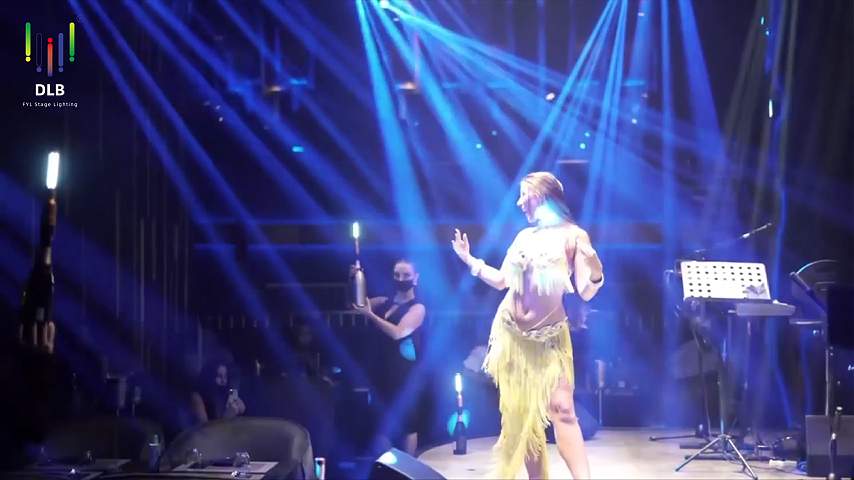

As the “energy engine” of the space, beam lights use high-brightness, sharp beams to form dynamic structures. When the atmosphere needs to heat up, they cut rapidly through the air and strobe in rhythm, instantly igniting the vibe. During leisure hours, they switch to slow scanning or static beams, maintaining layering without excessive stimulation.
Bee-eye lights act as the “ambient base.” Their unique microlens array projects dense, independently controllable light spots, simulating delicate effects like stardust, particle flows, or rippling waves, laying a deep, breathing visual foundation so guests feel immersed in a flowing ocean of light.
Face lights provide critical functional illumination. Using high-CRI COB LED sources, they accurately light the bar, booths, and walkways, ensuring safe and convenient service while restoring natural skin tones and spatial texture with soft, even light for comfortable social interaction.
The four fixture types work in deep synergy via a central control system: lasers for highlights, beams for structure, bee-eyes for ambiance, and face lights for functionality. Together they deliver a complete light narrative from sunset to midnight psychedelia, making Mawal Lounge the most stylish leisure and social destination locally.
Project Overview
| Item | Details |
|---|---|
| Export Country | [To be filled] |
| Products | Laser Light, Beam Light, Bee-Eye Light, Face Light |
| Quantity | Laser: 4 units; Beam: 12 units; Bee-Eye: 16 units; Face: 8 units |
| Transaction Time | 2024 |
Client Background
Mawal Lounge is positioned as a high-end leisure and social venue targeting urban elites and business professionals pursuing quality lifestyle. The client aimed to create a hybrid space suitable for post-work relaxation, themed parties, and private events. The venue features high ceilings with excellent visual depth, but the original lighting system was too simple to meet multi-period, multi-scenario operational needs. The client clearly required a lighting system that could flexibly switch between leisure and party modes, maintain an elegant lounge tone while retaining explosive visual energy when needed, without disrupting guest comfort or conversation.
Cooperation Process
Cooperation began with the client’s pursuit of balanced, dynamic yet restrained atmosphere. After an on-site survey, our team proposed a design concept centered on a “four-layer light and shadow system”: bee-eye lights for ambient base, beam lights for dynamic structure, laser lights for highlights, and face lights for functional support. We produced detailed 3D simulation videos demonstrating full scene transitions from sunset mode and evening social mode to late-night party mode.
Following approval, we conducted focused testing on the CCT adjustability and color rendering index of face lights to ensure comfortable human lighting across all periods. After production, our engineers supervised on-site installation and provided systematic training for the venue’s lighting operator, focusing on coordinated programming and preset scene triggering for the four fixture types.
Product Details & Technical Specifications
The solution is built around four specialized fixtures working in synergy, forming a complete lighting effect ecosystem.
Product Highlights
-
Laser LightCore: purity and precise control.Uses solid-state laser modules delivering pure red, green, and blue lasers with extremely high color saturation and no stray light. Supports DMX control for beam scanning, graphics, text projection, and more.
-
Beam LightCore: speed and power.High-power discharge lamp with precision optics for sharp, straight beams. Equipped with color wheels and prism systems for quick effect changes. Pan 540°, Tilt 270°, fast response, accurate positioning.
-
Bee-Eye LightCore: delicate light particle texture.Honeycomb microlens array for dense, controllable light spots simulating star clusters, digital rain, particle flows. Supports Wash, Beam, Visual modes; RGBW infinite color mixing.
-
Face LightCore: uniform, accurate basic lighting.High-CRI COB LED (CRI ≥95) for realistic skin tone and detail reproduction. Smooth flicker-free dimming, adjustable CCT (3000K–6000K), ideal for social spaces.
Key Technical Parameters
| Item | Laser Light | Beam Light | Bee-Eye Light | Face Light |
|---|---|---|---|---|
| Light Source / Power | Solid-state RGB laser | 380W discharge lamp, 450W | 19×12W RGBW LED, 260W | COB LED, CRI≥95, 200W |
| Beam Angle | Adjustable scanning range | 2.5°–20° electronic zoom | 6° | 60° flood |
| Color System | Pure RGB lasers | 14 colors + white, CMY | RGBW infinite mixing | 3000K–6000K adjustable |
| Core Effects | Scanning, graphics, text | 8+24 prism combo, bi-rotation | Wash / Beam / Visual | 0–100% linear dim, flicker-free |
| Control Protocol | DMX512, ILDA | DMX512, RDM, 16CH | DMX512, Master-Slave, Sound | DMX512, RDM |
| Lifetime | 10,000 hrs | 2,000 hrs (lamp) | 50,000 hrs | 50,000 hrs |
Client Testimonial
“Mawal is positioned as a high-end lounge where people can chat, but we didn’t want to give up nighttime energy. Fengyi’s four-layer system perfectly balanced our needs.The particle background from bee-eye lights makes the space feel like a flowing starry sky — guests can’t help but take photos as soon as they enter.Beam lights can ignite the crowd when needed without feeling harsh or oppressive.Laser accents add just the right amount of tech style without being distracting.What impresses me most is the face lights — they make bartenders and guests look natural, and photos come out great, which is crucial in the social media era.Since opening, many guests come specifically for the light and shadow atmosphere, and our repeat purchase rate has increased by 40%.The Fengyi team’s understanding of the lounge business exceeded expectations. They are truly scenario-savvy partners.”
Brand Value: Enhancing Credibility & Conversion
-
Precise lounge positioningDemonstrates deep understanding of the balance between leisure bars and nightclubs, proving Fengyi’s ability to deliver differentiated solutions for varied business models.
-
System integration capabilityShows organic coordination of lasers, beams, bee-eyes, and face lights, proving Fengyi delivers full visual solutions rather than simple equipment sales.
-
Balance of function and artHighlights the critical role of face lights in natural skin tone and comfort, reflecting attention to guest experience — especially vital for high-end social venues.
-
Professional technical depthDetails including ILDA control, multi-mode bee-eye effects, and high-CRI flicker-free dimming appeal to quality-focused professional buyers.
-
Multi-scene adaptabilityFull scene shifting from daytime to late-night party mode links lighting to all-day operational efficiency, proving lighting as a revenue-driving tool.
-
International compliance assuranceProducts comply with global protocols (DMX512, RDM) and support CE, RoHS certifications, boosting overseas client confidence in compatibility and reliability.
