5‑Dimensional Light Effect Law
Design & Application of the Immersive Lighting System for ATOM SHINJUKU
Project Description
This article shares professional knowledge based on the lighting project for ATOM SHINJUKU in the heart of Tokyo, Japan. It provides an in-depth analysis of how to create a highly thematic, immersive commercial venue in the competitive global nightlife industry through the scientific combination and precise application of five professional lighting types: Triangle Lights, Matrix Lights, Beam Lights, Bee-Eye Lights, and Face Lights.
The project not only shares practical configuration and implementation experience but also extracts a replicable lighting design methodology from the perspectives of design thinking, product features, synergy logic, and programming strategy. It helps bar owners, designers, and industry professionals understand the principles and commercial value of building a professional lighting system.
Project Introduction
Shinjuku, Tokyo — one of the world’s most densely neon-lit districts, where every ray of light competes for attention.
In this environment, ATOM SHINJUKU chose a distinct approach:
not more light, but more layered, precise, and narrative light.
“ATOM” represents energy, structure, and infinite possibility — a theme woven into the entire lighting design.
We built a 5‑Dimensional Lighting System using Triangle, Matrix, Beam, Bee-Eye, and Face Lights, transforming abstract scientific concepts into perceptible visual experiences.
Like the fundamental particles of an atom, the five fixtures coordinate under an intelligent control system to perform a complete emotional spectrum from Stable State to Fission State, making ATOM an unmissable visual landmark in Shinjuku’s nightscape.
Project Overview
- Project Name: ATOM SHINJUKU “Atomic Fission” Immersive Lighting System
- Location: Shinjuku Ward, Tokyo, Japan
Core Design Challenges
- Theme Translation: How to turn the abstract scientific concept of “atom” into perceivable lighting language?
- Fixture Selection: Why these five types? What roles do they each play?
- Spatial Layering: How to build full-dimensional visual layers from floor to ceiling in a limited space?
- Emotional Programming: How to guide customer emotions from opening to peak party?
- Cross-Border Implementation: How to ensure high-standard delivery and stable long-term operation in Japan?
Fixture Configuration
- Triangle Light: Core visual symbol & geometric aesthetic
- Matrix Light: Pixel art & ambient base provider
- Beam Light: Energy structure & dynamic rhythm driver
- Bee-Eye Light: Texture layering & color blending magician
- Face Light: Figure lighting & detail presentation guarantee
Core System
Dual-redundant intelligent control system based on Art-Net protocol, supporting timecode sync, real-time audio trigger, and one-click scene recall.
Detailed Project Analysis
I. Theme Translation: From “Atom” to “Light & Shadow”
We extracted four key images from atomic physics and translated them into lighting:
-
Particle Nature → Pixel points of Triangle LightsIndependent pixels represent energy particles with individual color and brightness control.
-
Electron Cloud → Pixel flow of Matrix LightsSimulates the random yet ordered distribution of electrons around the nucleus.
-
Energy Trajectory → Sharp beams of Beam LightsMatches the precise, high-speed motion of particles in an accelerator.
-
Complex Structure → Prism diffusion of Bee-Eye LightsSimulates the complex internal interactions and multi-layered texture of atoms.
-
Human Core → Clear presentation of Face LightsThe “nucleus” of the venue is people; face lighting ensures they remain visible and natural.
II. Market Positioning: Strategy for Differentiation
In Shinjuku’s saturated nightlife market, ATOM chose extreme futurism over traditional neon:
- Traditional Bar Lighting: Warm, soft, “ambiguous” atmosphere
- ATOM Lighting Language: Cool-toned, sharp beams, precise pixels, “futuristic tech” atmosphere
This sharp contrast makes ATOM immediately recognizable upon entry.
III. Spatial Layering: The 5‑Dimensional Visual System
We divided the space into five vertical layers, each led by one fixture type:
- 1st Layer (Floor): Matrix Lights embedded in the floor for dynamic pixel flow.
- 2nd Layer (Waist Height): Bee-Eye Lights project textures onto walls and booths.
- 3rd Layer (Human Height): Face Lights illuminate social areas for clear, natural visibility.
- 4th Layer (Air): Beam Lights carve energy trajectories and define spatial boundaries.

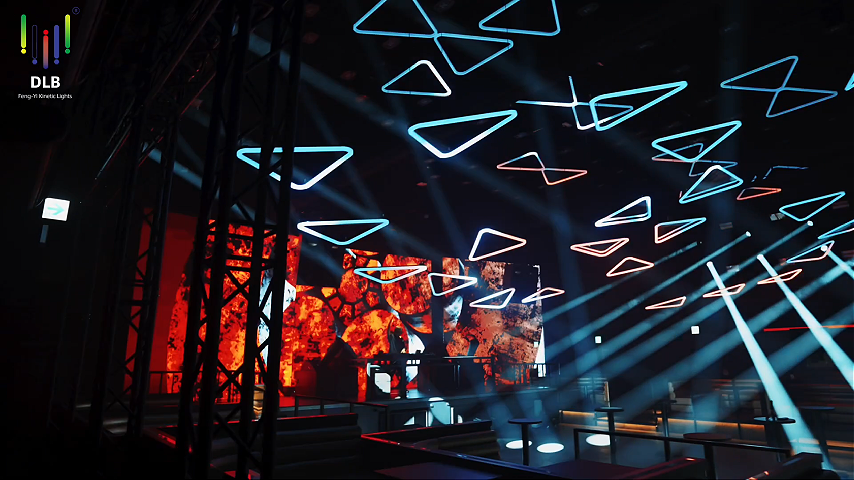

- 5th Layer (Ceiling): Triangle Lights as the core visual symbol overlooking the entire venue.
IV. Emotional Programming: 4‑Act Lighting Narrative
表格
| Stage | Time | Emotional Position | Lighting Focus |
|---|---|---|---|
| Stable State | Opening | Mysterious, calm, anticipatory | Slow pixel breathing, gentle electron cloud flow |
| Excited State | Social Hour | Vibrant, elegant, interactive | Prism patterns, accelerated matrix flow |
| Fission State | Peak Party | Wild, shocking, explosive | Full activation, beam matrix, high-frequency flashes |
| Return State | Closing | Relaxed, memorable, peaceful | Dimmed intensity, “Goodbye” text display |
Project Solutions
I. Atomic-Themed Scene Library (Over 50 Scenes)
- Electron Orbit: Circular pixel flow simulating electron movement
- Nuclear Fission Chain: Beams bursting outward from the center
- Quantum Superposition: Random flickering of Triangle & Bee-Eye Lights
- Stable Island: Comfortable social zones with balanced face lighting
- Particle Collision: Dual beam groups colliding for strobe bursts
II. Real-Time Music Response System
The audio analysis module maps music to lighting:
- BPM: Matches flow speed and scan frequency
- Spectrum: Low frequency → strobe; Mid → rotation; High → pixel flicker
- Dynamics: High energy → stronger beams; Calm → softer wash & texture
III. Ritual Moment Customization
- Cheers Moment: Countdown + champagne-colored pixel fountain
- Birthday Fission: Rotating energy circle around the guest
- Midnight Countdown: 60-second light show with color-changing themes
IV. Cross-Border Implementation Guarantee
- PSE Certified for Japanese electrical safety
- Dual-redundant control system for fail-safe operation
- Local Tokyo technical support for rapid response
- Japanese operation & maintenance manuals
Product Application Analysis
表格
| Fixture Type | Core Features & Technical Strengths | Design Role | Application Strategy in ATOM |
|---|---|---|---|
| Triangle Light | Independent pixel control, RGBW, modular geometry, DMX512 | Core Visual Totem
|
Ceiling matrix; slow breathing for opening; high-speed flicker for parties; displays “ATOM” logo |
| Matrix Light | Pixel-mapping, high-speed chase, full-color, floor/wall install | Pixel Artist
|
Floor energy field; wall digital patterns; path guidance; BPM-synced flow |
| Beam Light | Ultra-bright, narrow beam, fast movement, prism effects | Energy Architect
|
Air beam matrix & light tunnel; drum-point sync; focal energy circles |
| Bee-Eye Light | Honeycomb lens, beam/wash dual mode, prisms, rich textures | Texture Magician
|
Wall projection; ambient color base; detail filling; quantum simulation |
| Face Light | CRI ≥95, flicker-free, adjustable white light | Figure Painter
|
Illuminates DJ booth, bar, and social areas; natural skin tones; functional zoning |
In-Depth Synergy Logic
1. Visual Hierarchy (Primary‑Secondary Relationship)
- 1st Priority (Lead): 1–2 fixtures dominate per scene
- 2nd Priority (Support): 2–3 fixtures complement the lead
- 3rd Priority (Base): Face Lights always ensure visibility without competing
2. Rhythm Design with “Breath”
- Accumulation: Bee-Eye & Matrix Lights build energy slowly
- Explosion: Beam & Triangle Lights burst into climax
- Decline: All fixtures soften, preparing for the next cycle
3. Unified Color System
- Brand Color: Purple + Blue as core identity
- Emotion Color: Warm for opening, cool for party, neutral for social
- Dynamic Color: Music-synced spectral color shifts
FAQs
Q1: What is the difference between Triangle Lights and traditional PAR lights?
A: Triangle Lights offer pixel-level independent control, while PAR lights only change color as a whole. Their unique geometric shape also acts as a strong brand symbol, making the venue instantly recognizable in photos and social media — critical for differentiation.
Q2: How do you avoid visual chaos with five fixture types?
A: Through strict layered control and timing design.
We follow the Lead‑Support rule: only 1–2 fixtures are dominant at any moment. We also use a natural “breathing rhythm” — accumulate, explode, decline — just like music, preventing fatigue and chaos.
Q3: Don’t Face Lights ruin the futuristic tech atmosphere?
A: On the contrary, they provide the essential human balance.
Without clear, natural lighting on people, social interaction breaks down.
Face Lights are subtle, non-intrusive, and can even blend into strobe effects at peak hours. Good lighting balances technology and humanity.
Q4: Is the system difficult for Japanese staff to operate?
A: We use a simple interface + professional backend design.
Staff only tap preset modes (Opening, Social, Party, Birthday) on a Japanese touchscreen.
All complex programming is pre-configured. Training takes just 15 minutes for daily operation.
Q5: Can we update content for holidays like Halloween?
A: Yes — the system is software-upgradable and scalable.
We reserve 30–40% programming space for festivals. New scenes (pumpkins, skulls, color themes) can be created quickly without hardware changes.
Q6: What commercial value does this system bring to ATOM?
A:
- Social media exposure +200% in the first month
- The triangle matrix became a viral Instagram hotspot
- Increased foot traffic and premium brand events
- Long-term adaptability to music and trend changes
Lighting becomes a revenue-generating brand asset, not just decoration.
Conclusion
The ATOM SHINJUKU lighting project is a deep exploration of using light to tell a scientific story and achieving differentiated competition in a mature market.
Its core value lies not in the number of fixtures, but in a complete design system:
- Theme first: All decisions serve the core concept
- Purposeful fixtures: Each has a clear role
- 5‑Dimensional layering: Full immersion from floor to ceiling
- Emotional narrative: Light guides customer mood
- Ordered synergy: Harmony, not chaos
In the world’s most competitive nightlife battlefield, ATOM proves that
light is no longer a supplement to space — it becomes the defining force of space.
May this 5‑Dimensional Light Effect Law inspire more designers to create amazing works with light.
Recommended for you
Divine Light Through a Thousand Years Analysis of Lighting Design & Application for the 800th Anniversary of the Great Saint’s Birth in Japan
Divine Light Through a Thousand Years – Lighting Design & Application Sharing for the 800th Anniversary of the Great Saint’s Birth in Japan
What Are Moving Head Lights? 7 Powerful Facts Every Beginner Must Know
Mastering Moving Head Lights for Stage Lights: Selection, Setup & Pro Techniques 2026
Prdoucts Categories
FAQ
Creativity & Special Effects
What is a Gobo, and how is it used in stage lights?
A Gobo is a metal or glass patterned slide inserted into profile lights. Stage lights project Gobos (leaves, windows, textures, logos) onto stages, floors, or backdrops to enrich visual detail.
Technology & Parameters
How to achieve smooth color fades with stage lights?
Use stage lights supporting high-resolution dimming, and program gentle, gradual value changes on RGB or color-mixing channels via the console to achieve seamless color transitions.
Maintenance & Safety
How does power interference from stage lights affect audio systems?
Low-quality or aging SCR dimmers for stage lights generate heavy harmonics that couple into audio systems via power lines, causing hum or buzz. Solutions include power conditioning or using interference-free LED stage lights.
Why should you never touch the bulb of a traditional lamp-type stage light with bare hands?
Oil from skin leaves residues on the quartz bulb surface. At high operating temperatures, the oil carbonizes, causing localized overheating, drastically shortening bulb life, or even causing explosion. Always wear gloves or handle with a soft cloth.
Basic Concepts & Types
What is the difference between spotlight stage lights and floodlight stage lights?
Spotlight stage lights produce narrow, highly directional beams with clear edges, used to highlight individuals. Floodlight stage lights provide large-area, uniform illumination for lighting up entire scenes or backgrounds.
What types of equipment are usually included in “special effects lights” for stage lights?
As supplements to stage lights, special effects lights typically include laser lights, smoke machines, haze machines, bubble machines, snow machines, and devices that simulate flame, lightning, and other visual effects.
Education & Career
What well-known institutions offer stage light design programs domestically and internationally?
International: Royal Academy of Dramatic Art (RADA, UK), Yale School of Drama (US). Domestic: Central Academy of Drama, Shanghai Theatre Academy, both with top stage light design programs.
You may also like
Fengyi 7x60W Waterproof Bee Eye Moving Head Professional LED Stage Lights for Concerts
The Fengyi 7*60 Waterproof Bee Eye offers powerful LED stage lights for concerts with reliable moving head stage lights and DMX control. Designed for outdoor use, it ensures vibrant, dynamic lighting performance in all weather, perfect for professional stage and event setups.
Fengyi 5x120W RGBL 4in1 LED Beam Bar Moving Head Light stagelighting DMX DJ Club Stage
Discover Fengyi's 5x120W RGBL 4in1 LED Beam Bar Moving Head Light, perfect for dynamic stage lighting. These DMX moving head stage light fixtures deliver vibrant effects for concerts, clubs, and DJ events. Elevate your show with powerful, professional LED stage lights for concerts.
Fengyi 480W All-in-One Moving Head Beam Light Professional Stage Lighting FY-BM-10003
The 480W All-in-One Powerhouse FY-BM-10003 by Fengyi is a high-performance Moving Head Beam Light, delivering powerful illumination and dynamic effects. Ideal for professional events, this versatile product combines efficiency and durability for stunning visual experiences.
Fengyi 380W Intelligent Moving Head Stage Lights All-in-One System FY-BM-10002
The Fengyi 380W All-in-One Powerhouse FY-BM-10002 delivers reliable, high-efficiency energy solutions with compact design. Ideal for versatile power needs, the FY-BM-10002 ensures durable performance and easy integration. Choose Fengyi for advanced, eco-friendly power systems.
Inquire About Our Moving Head Stage Lights
Whether you're interested in our services, need project advice, or want to discuss potential collaborations, our team is ready to assist you. Let’s build something great together.
* Fill The Form
Contact
Building 5, No. 34, Fuyuan Road, Jinghu Industrial Zone, Xinhua Town, Huadu District, Guangzhou, China.
WhatsApp: +86 181 2742 0174
Tel. +86(20) 8642 3596
Ph. +86 150 1870 4285
More information
© 2026 Fengyi. All Rights Reserved.
Fengyi Light
Fengyi Light
Fengyi Light
Fengyilighting
