The Ever-Changing Conventional Lights – An In-Depth Analysis of Gobo Effects

The Source of Gobo Effects: The Gobo

The starting point of all gobo effects lies in a tiny metal or glass disc – the Gobo. Its working principle resembles the ancient shadow play: light emitted from a powerful source passes through the etched or hollowed pattern on the Gobo, then is enlarged, sharpened, and projected through a complex lens group (zoom and focus system), finally forming a clear image on the stage surface.

Types of Gobo

Metal Gobo

Made by chemical etching or laser engraving, metal gobos feature low cost and high durability. They are commonly used to produce clear, sharp geometric shapes, text, logos, or standard textures such as window panes and fences.

Limitation: Metal gobos have difficulty expressing complex mid-tones and delicate gradients.

Glass Gobo

Made of high heat-resistant glass through photolithography and coating processes, glass gobos can present complex images with grayscale variations, such as realistic clouds, architectural silhouettes, human outlines, and even photographic works.

In terms of color, they can achieve monochrome or multi-color effects (amber, blue, etc., via coating), with artistic expressiveness far exceeding that of metal gobos.

The Optical System: The Soul of Shaping Gobos

A Gobo alone is not enough; the exceptional optical system of profile stage lights determines the quality of the final effect.

Zoom and Focus

High-quality profile stage lights are equipped with independent zoom and focus systems:

• Zoom: Changes the projection size of the gobo.

• Focus: Adjusts the “hardness” of gobo edges.

From sharp, crisp hard edges to soft, hazy edges, the focus function allows designers to switch freely between realism and impressionism, adapting to different scene atmospheres.

Gobo Rotation and Vibration

• Rotation: By rotating the Gobo itself, the projected pattern gains dynamic effects such as spinning gears or swirling vortices.

• Vibration: Makes the Gobo vibrate slightly and rapidly in a planar motion, bringing effects like flames and water waves to life, as if swaying naturally.

Gobo Combination and Indexing

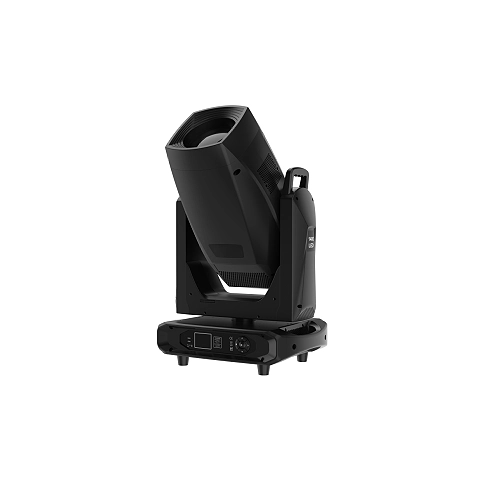

Modern moving head profile stage lights often include multiple gobo wheels, each holding 6–8 different gobos.

• Designers can quickly switch, overlay, or blend two gobos to create unique composite images.

• The indexing function allows the gobo to stop at any tiny angle, achieving infinite position combinations.

Artistic Application and Creative Practice

The application of gobo effects is the finishing touch of lighting design.

Environment Shaping

Gobos can define space without complex sets:

• Tree branch gobos to build a forest.

• Gothic window gobos to imply a church.

• Abstract geometric textures to create a futuristic floor.

Mood Rendering and Symbolism

• Broken glass patterns suggest crisis or conflict.

• Heart patterns convey love.

• Slowly rotating nebula gobos create a dreamy, mysterious atmosphere.
  Gobos act as visual metaphors, communicating directly with the audience’s emotions.

Dynamic Narrative

In dramas or musical performances, gobos can participate in storytelling:

• Following a character’s inner changes, the background pattern gradually distorts and disintegrates.

• At the climax of a song, explosive spreading gobos amplify emotional impact.

Architectural Integration

Projecting architectural patterns (arches, columns) onto actual walls expands or alters the inherent architectural sense of space, realizing interaction between virtual architecture and physical space.

Key Points for Selection and Application

When choosing and applying gobo effects, designers must consider:

1. Brightness and Distance: Complex glass gobos and fine patterns cause greater luminous flux loss. For long-distance projection or strong ambient light, higher-brightness sources (700W+ LEDs or lasers) are required.

2. Gobo Library Management: Building a digital gobo library corresponding to physical gobos improves programming efficiency.

3. Coordination with Ambient Light: Visibility of gobo effects depends on a relatively dark environment. The brightness and angle of other key and wash lights must be finely controlled to avoid washing out the gobos.

Conclusion

Gobo effects are a toolbox full of possibilities. Starting from a tiny Gobo, through sophisticated optical control and creative artistic conception, lighting designers can transform static beams into flowing pictures, inject soul into the stage, and let every beam of stage lights tell its own story.
