Light & Shadow Quintet:Multi-Dimensional Lighting Design Methodology for Zhangmutou Bar, Dongguan
Project Description
Taking the actual lighting project of Zhangmutou Bar in Dongguan as a case study, this article deeply analyzes how modern commercial spaces can build an immersive light and shadow environment with rich layers and adjustable moods through a systematic combination of multiple professional lighting fixtures. The project uses five core products: Lifting Square Beam Screens, Full-Color Animation Lasers, Bee-Eye Lights, Effect Lights, and Beam Lights, achieving precise coordination between mechanical movement and light changes via an intelligent control system. This article shares the functional positioning and collaborative logic of these five fixtures in bar environments, providing professional lighting design references for owners, designers, and industry peers, and explaining why these products are selected and how they work in synergy.
Project Introduction
Zhangmutou Bar is located in the core business district of Dongguan. The owner aimed to create a nighttime social space featuring industrial texture and futuristic technology. The space follows a typical layout: bar counter, loose seating area, dance floor, and booth zone, with a significant ceiling height (up to 5.5 meters), providing a solid physical foundation for multi-dimensional lighting design.
The core challenge was: how to make lighting not only illuminate the space but also tell stories, enabling seamless transitions from casual socializing to high-energy parties within a limited area? Our solution was to build a Five‑Dimensional Lighting Narrative System:
- Lifting Square Beam Screens define spatial structure
- Lasers create visual highlights
- Bee-Eye Lights enrich texture and detail
- Effect Lights establish ambient color bases
- Beam Lights strengthen rhythmic dynamics
Under unified control of a central control system, the five fixture types work together to form a breathing, transformable, and interactive light and shadow space.
Project Overview
- Project Name: Dynamic Lighting System for Zhangmutou Bar, Dongguan
- Location: Zhangmutou Town, Dongguan City, Guangdong Province
- Space Layout: Main Bar, Central Dance Floor, Booths, VIP Private Rooms
Core Objectives
- Systematically integrate and coordinate five categories of professional lighting
- Establish one‑click switchable scene presets (Lounge / Party / Themed Night Mode)
- Strengthen spatial zoning and guide customer flow via lighting
- create visually attractive “check‑in spots” with strong social media appeal
Main Equipment List
- Lifting Square Beam Screens: 4 sets
- Full-Color Animation Lasers: 2 units
- Bee-Eye Lights: 16 units
- Effect Lights (Wash / Gobo): 12 units
- Beam Lights: 20 units
Core System
DMX512 Intelligent Control Network + Timecode Audio-Visual Linkage System
Project Achievements
Became a regional landmark lighting bar. Weekend occupancy increased by 35%, establishing a new nightlife landmark in eastern Dongguan.
Detailed Project Analysis
The lighting design faced three key challenges:
- Limited open space despite sufficient ceiling height, requiring visual extension.
- Long operating hours with drastically different atmosphere demands from lounge to party.
- Achieving top‑tier bar lighting effects within a controlled budget.
Spatial Structure Analysis
The bar has an L‑shaped layout, with the main dance floor at the corner and the bar along the long side. The solution was a central radiation layout: concentrate dynamic effects on the dance floor while connecting other zones via extended light lines and indirect reflection.
Time Period Demand Analysis
表格
| Time | Atmosphere | Recommended Lux | Color Tone | Dynamic Level |
|---|---|---|---|---|
| 19:00–22:00 (Lounge) | Warm, comfortable, social | 80–100 lux | Amber, light pink | Low (slow change) |
| 22:00–00:00 (Transition) | Gradually heating up | 50–80 lux | Mixed tones | Medium |
| 00:00–02:00 (Party) | High energy, immersive | 20–50 lux | Cool & saturated | High (intense strobe) |
Zoning Functional Requirements
- Entrance: Strong visual identity and first impression
- Bar area: Precise working lighting (150 lux at counter) + premium display
- Dance floor: Maximum dynamics and visual impact
- Booths: Adjustable ambient light balancing privacy and participation
Based on the above, we deployed a three‑dimensional light matrix:
High‑altitude structure + Mid‑altitude dynamics + Ground atmosphere.
Project Solution
The core methodology uses a three‑dimensional control logic:
Vertical Layering + Horizontal Zoning + Time Segmentation
1. Vertical Layering: Building a 3D Visual Space
-

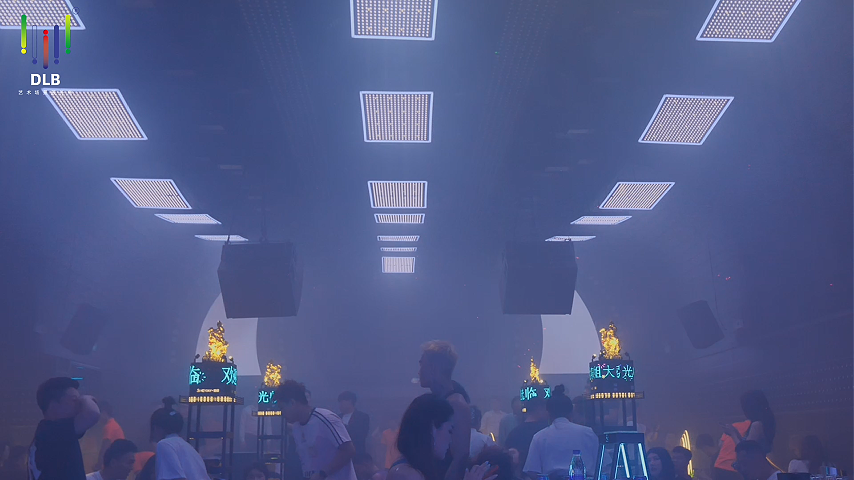

High Layer (above 3.5m): Lifting Square Beam Screens4 units (1.2m × 1.2m) above the dance floor, adjustable from 2.2m to 5.5m.Lower: immersive beam matrix; Raise: open space for beam lights.Built‑in RGBW for chases, strobes, and fades.
-
Middle Layer (1.5–3.5m): Beam Lights + Lasers20 Beam Lights for fast scanning and strobe.2×30W Full‑Color Lasers for sharp graphics, nebulae, and text.
-
Ground Layer (below 1.5m): Bee-Eye Lights + Effect Lights16 Bee-Eye Lights project textures on walls and floors.12 Effect Lights provide wide color washing.
2. Horizontal Zoning: Tailored for Each Area
- Dance Floor (core, ~60㎡): Full output of all fixtures.
- Bar Area: Soft wash + subtle texture; lifting screens stay high.
- Booths: Low‑brightness wash + local gobo; no direct harsh light.
- Entrance: Logo projection and welcome patterns.
3. Time Segmentation: Three Preset Scene Modes
Scene 1: Sunset Moment (Lounge Mode)
- Warm tones (amber, pink, champagne), slow fades
- Soft water/cloud textures from Bee-Eye Lights
- Lifting screens static high, warm white low brightness
- Beam & Laser off
- Atmosphere: warm, relaxed, social
Scene 2: Blue Hour (Transition Mode)
- Cool colors (blue‑purple, cyan) with slow color cycles
- Geometric patterns, slow rotation
- Lifting screens move extremely slowly
- Low‑intensity beam scanning + static laser lines
- Atmosphere: building tension, party ready
Scene 3: Midnight Rhapsody (Party Mode)
- High‑frequency color changes, 100% brightness
- Bee-Eye prism effects, fast rotation synced to BPM
- Lifting screens move rapidly with music drops
- Beam strobe & scanning locked to bass beats
- Laser animations (nebula, text, beam networks)
- Atmosphere: high energy, immersive, maximum impact
Additional presets: Birthday, Festival, Brand Launch.
Product Application Analysis
表格
| Fixture Type | Role & Core Function | Technical Features | Application & Synergy |
|---|---|---|---|
| Lifting Square Beam Screen | Spatial Architect & Visual Centerpiece | 3m lift, 0.1–0.5m/s speed; RGBW matrix; DMX control | 4 units form the visual core. Slow rise for anticipation, fast drop at drops for intense impact. Acts as a dynamic “canvas” for other lights. |
| Full-Color Animation Laser | Visual Highlight & Brand Communicator | 30W RGB, ILDA support, ±30° scan, safety lock | Mounted at >3.5m, tilted 15° upward. Projects networks, nebulae, custom text. Provides sharp, recognizable visual accents. |
| Bee-Eye Light | Texture Painter & Detail Filler | 19×40W RGBW; dual prisms (8/24); zoom 4°–60° | Projects honeycomb, nebula, water ripple. In lounge: soft textures; in party: 24‑beam light rain. Fills visual gaps. |
| Effect Light | Ambience Base Creator | 19×40W RGBW; zoom 8°–50°; color macros | Wide 50° wash for lounge; narrow 8° dynamic spots for party. Provides unified color background. |
| Beam Light | Energy Driver & Rhythm Enhancer | 380W, 1.8° beam, 7800K, 8/16 prism | Delivers main dynamic power: scanning, strobe, cross‑beams. Syncs to bass beats, turning audio rhythm into visual impact. |
FAQs
Q1: What is the core advantage of Lifting Square Beam Screens over traditional fixed lights?
A: They add a fourth dimension: physical vertical movement. This creates real “breath” and “tension” that pure lighting cannot match. Slow rise expands space; fast drop intensifies atmosphere. The dual control of lifting + light effects creates unique emotional moments.
Q2: Are lasers safe in a bar environment?
A: Yes, with strict safeguards:
- Professional lasers meeting FDA/IEC standards with auto‑shutoff
- Mounted above 3.5m, tilted 15°–20° above eye level
- Software‑limited safe scanning zones
- Controlled haze to keep effects above the crowd
- Full operator training
Q3: Is daily operation complicated with five fixture types?
A: Extremely simple. We provide a 15.6‑inch touchscreen with one‑click presets: Lounge, Party, Birthday, Festival. All complex programming is pre‑loaded. Staff only select scenes; master faders control brightness, speed, and color temperature.
Q4: How does the system support different themed events?
A: Pre‑programmed theme libraries:
- EDM Party: high strobe, fast scanning, laser animations
- Retro Night: warm washes, vintage patterns
- Brand Launch: custom logo projection, brand colors
Scenes are one‑click or timecode‑triggered.
Q5: Do budget bars need all five fixture types?
A: No. We recommend phased expansion:
- Basic: Beam Lights + Effect Lights
- Advanced: Add Bee-Eye Lights
- Flagship: Add Lasers + Lifting Screens
The control system is pre‑wired for future expansion.
Conclusion
The Zhangmutou Bar project proves the powerful synergy of multi‑category professional lighting in commercial spaces. Through strategic combination and intelligent control, we transformed lighting from passive illumination into an active medium that shapes experience, tells stories, and drives emotion.
The project’s core insight: professional lighting design is not about quantity, but about deep understanding and creative combination.
- Lifting screens give space breath
- Lasers give vision focus
- Bee-Eye Lights give texture richness
- Effect Lights give color foundation
- Beam Lights give emotion rhythm
For the owner, this is an investment in brand visual assets. Within three months, weekend occupancy rose 35% and social media mentions increased 200%.
For the industry, it provides a replicable methodology: combine professional tools with clear logic, and achieve unlimited creativity through precise control.
We look forward to exploring more possibilities in light and shadow narratives for commercial spaces with partners worldwide.
